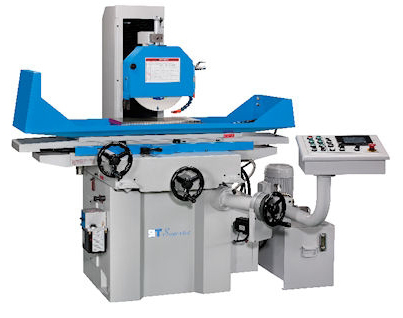

Model: SG-2A
Type: (2) Axis Automatic
Year: New
SPECIFICATIONS:
Table Size………………… 16″ x 32″
Longitudinal Travel…….(X).. 35”
Cross Travel…………..(Y).. 18”
Vertical Travel………..(Z).. 23.6”
Center Line Spindle To Table… 23.6”
Wheel Size………………… 14” x 1.5″ x 5”
Motor Size Voltage…………. 7.5 HP – 220/440V – 3 Phs
Axis……………………… (2)Axis Automatic
Table Weight Capacity………. To Be Advised
Weight……………………. 7480 Lbs
Dimensions………………… To be Advised
EQUIPPED WITH:
MACHINE FEATURES:
(2) Axis Hydraulic
Grinding Cycles
Semi Automatic, Surface & Crisscross
Table Traverse
Hydraulic Table-”Roller Bearing”
Motorized Cross Feed
Cast Iron Base
Double-V Turcite Cross Ways
Hardened & Ground Ways
Class “7” Spindle Bearings
STANDARD EQUIPMENT:
16” x 36” Electro Magnetic Chuck w/ Auto Demagnetizer
Chuck Control w/ Variable Holding Power
Coolant System w/Paper Filter
Splash Guard
Table Mounted Dresser
Auto Lube System
Balancing Arbor
Tool Box & Tools
Halogen Work Light
OPTIONAL ACCESSORIES
Electro Magnetic Chuck w/ Auto Demagnetizer
O.S. Walker Fine Pole Permanent Chuck
O.S. Walker Chuck Control
Full Enclosure & Mist Separator (-2” Cross Travel)
Cross Micro Feed
Vertical Micro Feed
Spare Wheel Flange
Parallel Dressing Attachment (Manual)
Magnetic Separator Coolant System
Magnetic Separator & Paper Coolant System
Radius Dressing Attachment
Angle Dressing Attachment
(2) Axis Sony Digital Readout – Installed
COMMENTS:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
