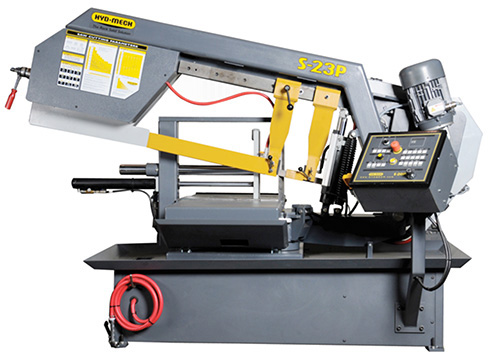

16″ x 20″ HYD-MECH … “SWIVEL HEAD” HORIZONTAL BANDSAW

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model:  S-23-P

Type: Semi-Automatic

Year: New

SPECIFICATIONS:

Cutting Capacity:
   Round
      Max. Height….. 16”
      at 90 Degrees… 16”
      at 45 Degrees… 12” (L)
      at 60 Degrees… 8″ (L)
   Rectangles:
      Max. Width…… 20”
      at 90 Degrees… 16 x 20”
      at 45 Degrees… 16” x 10” (L)
      at 60 Degrees… 16″ x 6″ (L)
Blade Size:……….. 1.25” x 15’6”
Blade Speed:(VS)…… 75-350 FPM
Motor Size:……….. 5 HP – 220/440V – 3 Phs
Weight:…………… 2400 Lbs

EQUIPPED WITH:

Swivel Head
1.25” Blade
60 Degree Single Miter
Outfeed Table
Powered Chip Brush
Positive Down Feed
Variable Frequency Drive
Blade Breakage Switch
Sequencer
Semi- Automatic

ADDITIONAL OPTIONS AVAILABLE … P.O.R.

COMMENTS:  Mfg. in North America

“USA”  IMPORTER  – DISTRIBUTION & PARTS CENTER

Need A Part ?
Have A Technical Question ?

CALL:  IMCO at 614-914-5087

F.O.B.:  Columbus, Ohio

TERMS:  Check w/Order

All prices subject to change without notice
