14" x 39" ECHOTECH ... (SEMI-AUTOMATIC) O.D. GRINDER
Click to enlarge
Home Grinders - New & Used O. D. GRINDERS - New & Used. 14″ x 39″ ECHOTECH … (SEMI-AUTOMATIC) O.D. GRINDER
4.92 SUMMIT ... CNC HORIZONIAL BORING MILL
4.92 SUMMIT ... CNC HORIZONIAL BORING MILL
Back to products
50 TON PRESS MASTER ... H-FRAME PRESS
50 TON PRESS MASTER ... H-FRAME PRESS

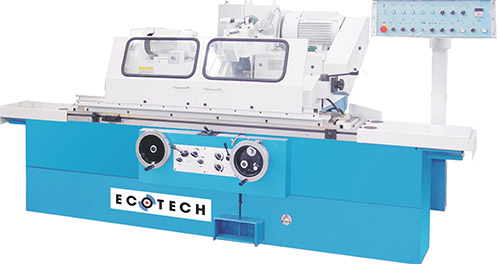

14″ x 39″ ECHOTECH … (SEMI-AUTOMATIC) O.D. GRINDER

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model: GA12-39

Year: New

Type: Semi-Automatic

SPECIFICATIONS:

Swing Over Table………………….. 14.1”
Distance Between Centers…………… 39.3”
Max. Length Grinding Between Centers… 39.3”
Max. Diameter…………………….. 12.6”
Swing in Gap……………………… No Gap
Opening In Gap……………………. No Gap
Max. Weight Between Centers………… 330 Lbs
Tailstock Taper…………………… #4 MT
Wheel Size……………………….. 24” x 3” x 12”
Motor Size: Main Spindle…………… 17.5 HP – 220V – 3 Phs
Motor Size: Work Head……………… 1-1/2 HP – 220V – 3 Phs
Spindle Taper…………………….. #5 MT
Spindle Head – Swivel……………… Non Swivel
Automatic Infeed………………….. YES
Weight…………………………… 8824 Lbs
Dimensions……………………….. To be Advised

EQUIPPED WITH

Standard & Perifpheral Wheel Dresser
Wheel Balancing Stand & Arbor
Sediment Flood Coolant System
General Purpose Grinding Wheel
Wheel Extractor & Hoister
Carbide Tipped Centers (#5 MT)
Open Type Steady Rest
Wheel Hub
Driving Dogs
Work Light
Splash Guard
Wrench Set
Leveling Wedges
Measuring & Leveling Plate
Operation & Maintenance Manuals

MACHINE FEATURES

Automatic Grinding Cycle
Cast Iron Machine Base
V-Flat Guide Ways
10Ëš Slant Table

OPTIONAL ACCESSORIES:

Digital Readouts

(1) Axis (Infeed)
(2) Axis (Infeed & Table Traverse)
(3) Axis (Infeed, Table Traverse & Table Swivel)

Variable Speed Workhead (15 HP)
Automatic Wheel Balance System
Paper Filtration System
Paperless Filtration System
Universal Workhead
Heavy Duty Life/Dead Spindle Workhead
8” – 4 Jaw Live Chuck
Transformer to 220V
Manual Swing Down Gauging System
Swing Down I.D. Grinding Spindle

COMMENTS:  Mfg. In Europe

“USA”  DISTRIBUTION & PARTS CENTER

Need A Part ?
Have A Technical Question ?

CALL: IMCO At 614-914-5087

F.O.B.  Location

TERMS:  Check w/Order

All prices subject to change without notice

SKU: 12701 Category: O. D. GRINDERS - New & Used.

Related products

8" x 20" SUPERTEC ... CYLINDRICAL GRINDER
Compare

8″ x 20″ SUPERTEC … CYLINDRICAL GRINDER

Model: G20P-50NC   Type:  Cylindrical Year: New SPECIFICATIONS: Swing Over Table………………….. 8” Distance Between Centers…………… 20” Max. Length Grinding Between
Add to wishlist
8" x 20" SUPERTEC ... CYLINDRICAL GRINDER
Compare

8″ x 20″ SUPERTEC … CYLINDRICAL GRINDER

Model: G20P-50M  Year: New SPECIFICATIONS: Swing Over Table………………….. 8” Distance Between Centers…………… 20” Max. Length Grinding Between Centers… 20” Max.
Add to wishlist
10" x 20" SUPERTEC ... CYLINDRICAL GRINDER
Compare

10″ x 20″ SUPERTEC … CYLINDRICAL GRINDER

Model: G25P-50NC   Year: New SPECIFICATIONS: Swing Over Table………………….. 10” Distance Between Centers…………… 20” Max. Length Grinding Between Centers… 20”
Add to wishlist
10" x 20" SUPERTEC ... CYLINDRICAL GRINDER
Compare

10″ x 20″ SUPERTEC … CYLINDRICAL GRINDER

Model: G25P-50M Year: New SPECIFICATIONS: Swing Over Table………………….. 10” Distance Between Centers…………… 20” Max. Length Grinding Between Centers… 20” Max.
Add to wishlist

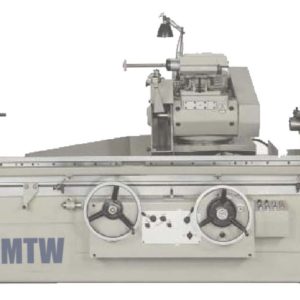

20" x 80" SMTW ... O.D. GRINDER
