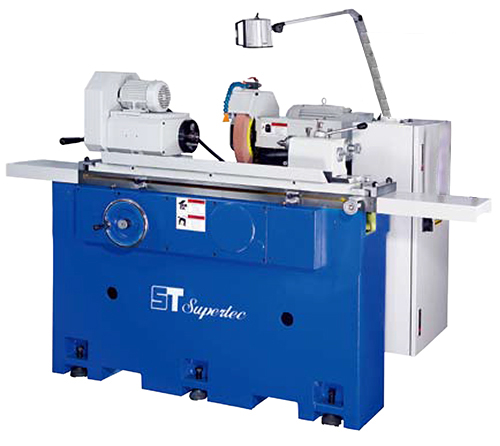

10" x 20" SUPERTEC ... CYLINDRICAL GRINDER
Click to enlarge
Home Grinders - New & Used O. D. GRINDERS - New & Used. 10″ x 20″ SUPERTEC … CYLINDRICAL GRINDER
8" x 20" SUPERTEC ... CYLINDRICAL GRINDER
8" x 20" SUPERTEC ... CYLINDRICAL GRINDER
Back to products
8 TON METAL CRAFT ... HAND TURRET PUNCH
8 TON METAL CRAFT ... HAND TURRET PUNCH

10″ x 20″ SUPERTEC … CYLINDRICAL GRINDER

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model: G25P-50M

Year: New

SPECIFICATIONS:

Swing Over Table………………….. 10”
Distance Between Centers…………… 20”
Max. Length Grinding Between Centers… 20”
Max. Diameter…………………….. 10”
Swing in Gap……………………… No Gap
Opening In Gap……………………. No Gap
Max. Weight Between Centers………… 176 Lbs
Tail Stock Taper……………………#3 MT
Wheel Size……………………….. 14” x ” x 5”
Motor Size: Main Spindle…………… 5 HP – 220V – 3 Phs
Motor Size: Work Head……………… 1/2 HP – 220V – 3 Phs
Spindle Taper…………………….. #3 MT
Spindle Head – Swivel……………… +/-45 Degrees (Work Head)
Manual Infeed…………………….. 6.3”
Weight…………………………… 5610 Lbs
Dimensions……………………….. To be Advised

EQUIPPED WITH:

MACHINE FEATURES:

One V One Flat Turcite Coated Guide Ways
Work Head Fixed
Cartridge Type Wheel Spindle
Hydraulic Tail Stock (Optional)
Internal Grinding Attachment (Optional)

STANDARD EQUIPMENT:

Auto Lube
Manual Dressing Attachment
Wheel Extractor
Grinding Wheel w/Adjusting Tools
Diamond Dresser
Coolant System
Carbide Tip Center
Leveling Screws
Splash Guard
Halogen Work Light
Balancing Arbor
5C Manual Collet Closer

OPTIONAL ACCESSORIES AVAILABLE:

Internal Grinding Attachment (12000/18000 RPM) G25P
Internal Grinding Attachment (25000 RPM) G25P
(.78” – 2.8”) (2) Point Steady Rest (G25P)
(2.8” – 4.8”) (2) Point Steady Rest (G25P)
(.03” – 1.1”) (3) Point Steady Rest (G25P)
(1.1” – 2.4”) (3) Point Steady Rest (G25P)
Hydraulic Tail Stock
440V Transformer
(2) Axis Sony Digital Readout (Installed)
(2) Days Factory Installation & Training (US Only)
Additional Days Training … (Per Day)

COMMENTS:

“USA”  DISTRIBUTION & PARTS CENTER

Need A Part ?
Have A Technical Question ?

CALL: IMCO At 614-914-5087

F.O.B.:  Location

TERMS:  Check w/Order

All prices subject to change without notice

SKU: 12038 Category: O. D. GRINDERS - New & Used.
