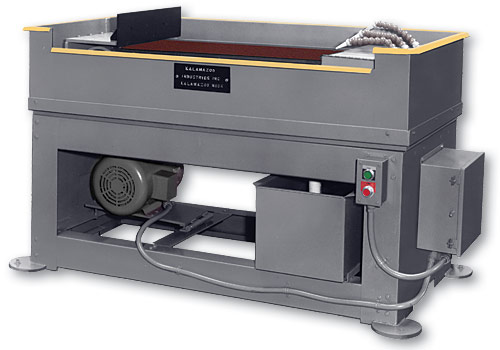

Model: S-14-HD
Type: Horizontal Belt
Year: New
SPECIFICATIONS:
Belt Size……….. 14” x 103”
Steel Platen…….. 14-1/2” x 36”
Work Surface…….. 14″ x 32″
Speed – Belt…….. 3400 SFPM
Air Supply………. 40 PSI
Motor…………… 20 HP – 220/440V – 3 Phs
Weight………….. 1800 Lbs
Dimensions (LxWxH).. 64″ x 31” x 35”
EQUIPPED WITH:
Manual Belt Tracking System
Pneumatic Belt Tension Control
Jog Button
MACHINE FEATURES:
Heavy Duty Plate Construction
Emergency Stop Button
Solid State Control
COMMENTS: Mfg. in U.S.A. !
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
