10" x 90" KALAMAZOO ... VERTICAL BELT SANDER
Click to enlarge
HomeSanders - New & UsedBelt Sanders 10″ x 90″ KALAMAZOO … HORIZONAL BELT SANDER
Previous product

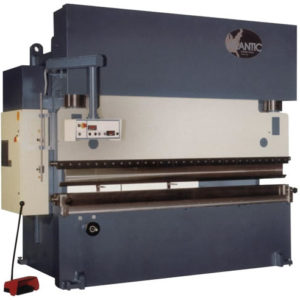

150 TON x 10' ATLANTIC ... PRESS BRAKE
150 TON x 10' ATLANTIC ... PRESS BRAKE
Back to products
Next product
1/2" x 10' ATLANTIC ... PLATE SHEAR
1/2" x 10' ATLANTIC ... PLATE SHEAR

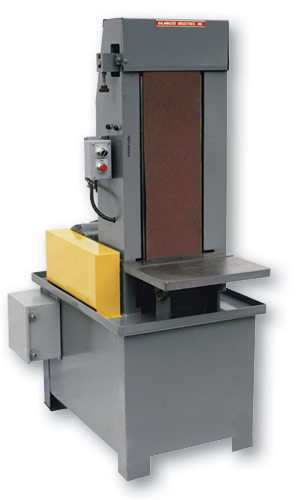

10″ x 90″ KALAMAZOO … HORIZONAL BELT SANDER

In stock

Request Quote
This product is already in quote request list
Browse the list
  • Description
Description

Model: S-10-HD
Type: Horizontal Belt Sander
Year: New

SPECIFICATIONS:

Belt Size………… 10” x 90”
Work Table Platen…. 29” x 10”
Work Surface……… 28″ x 10″
Cast Iron Table…… 14” x 18″
Table Tilt……….. 45 Degree Down
  ……….. 15 Degree Up
Speed-Belt……….. 1725 SFPM
Motor……………. 10 HP – 220/440V – 3 Phs
Weight…………… 900 Lbs
Dimensions (LxWxH)… 39″ x 28″ x 70″

EQUIPPED WITH :

Magnetic Switch w/Jog Button
TEFC Motor
Air Belt Tensioning … 40 Lbs Shop Air Required
Enclosed Stand
Manual Switch – Overload Protection
Cast Iron Frame
Full Safety Guards

COMMENTS:  Mfg. in U.S.A. !



“USA” IMPORTER – DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL:  IMCO at 614-914-5087



F.O.B.:  Location



TERMS:  Check w/Order



All prices subject to change without notice

SKU: 13259 Category: Belt Sanders
