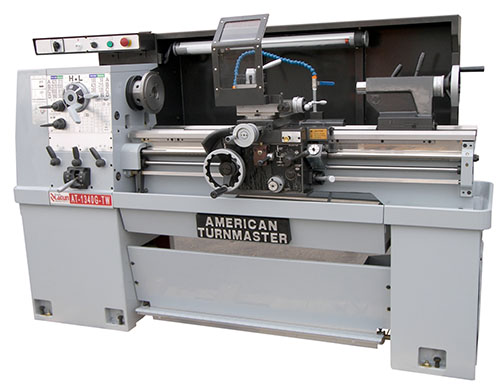

13″ x 40″ TURNMASTER … LATHE 1-9/16″ SPINDLE HOLE

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model: AT-1340-G
Type: Geared Head
Year: New

SPECIFICATIONS:

Headstock……………. Geared Head
Swing Over Bed……….. 13-3/8”
Swing Over Cross Slide… 8-1/4”
Swing in Gap…………. 20”
Dist Between Centers….. 40”
Spindle Nose…………. D1-4
Spindle Hole…………. 1-9/16”
Bed Width……………. 9”
Spindle Speeds(VS)……. 50 – 2570 RPM
Threading……………. Inch / Metric
Motor Size…………… 5 HP – 220V – 3 Phs
Tailstock Taper………. #3 MT
Weight………………. 2850 Lbs

EQUIPPED WITH:

MACHINE FEATURES

Variable Speed
1-9/16” Spindle Hole
Gap Bed Design
Hardened & Ground Head Stock Gears
Hardened & Ground Bed Ways
Turcite Carriage Ways
Overload Feed Clutch
Constant Horsepower

STANDARD EQUIPMENT

Tool Post
Thread Dial
Coolant System
Full Length Splash Guard
One Shot Lube
Foot Brake
Tools
Manual

OPTIONAL ACCESSORIES AVAILABLE:  P.O.R.

6” – 3 Jaw “Semi Steel” Chuck
8” – 3 Jaw “Semi Steel” Chuck
8” – 4 Jaw “Semi Steel” Chuck
10” – 4 Jaw “Jaw “Semi Steel” Chuck
Taper Turning Attachment …(Installed)
Lever Collet Attachment…(Installed)
5C Collet Set (1/8” – 1-1/8” x 1/16”)
“Aloris Type” Q.C. Tool Post w/(5) Holders
14N Jacobs “Ball Bearing” Chuck w/Arbor (0” – 1/2” Capacity)
#3 MT Live Center
Chuck Gourd w/Limit Switch
5-1/2” Steady Rest w/Rollers
4” Follow Rest w/Rollers
Micro Carriage Stop
(5) Position Carriage Stop
Upgrade To 440V – 3 Phs
Newall D.R.O. … Installed

COMMENTS:

“USA” IMPORTER – DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL:  IMCO at 614-914-5087

F.O.B.: Location

TERMS:  Check w/Order

All prices subject to change without notice

SKU: 10605 Category: Lathes - Conventional
