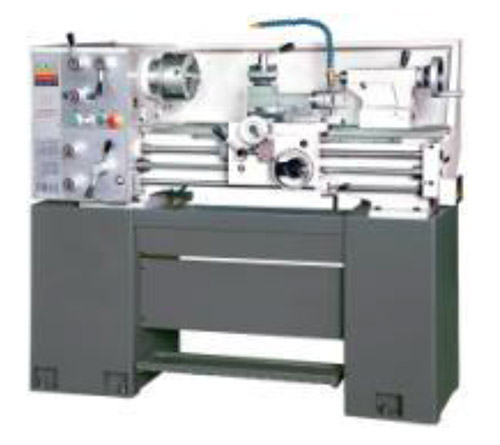

Model: LD
Type: Tool Room Lathe
Year: New
SPECIFICATIONS:
Headstock……………. Geared Head
Swing Over Bed……….. 13”
Swing Over Cross Slide… 7-5/8
Swing in Gap…………. 19-1/4”
Dist Between Centers….. 40”
Max Turning Length……. 40″
Spindle Nose…………. D1-4
Spindle Hole…………. 1-1/2”
Bed Width……………. 7-9/16”
Spindle Speeds(9)…….. 88 – 2000 RPM
Threading……………. INCH / METRIC
Motor Size…………… 3 HP – 220/440V – 3 Phs
Tail Stock Taper……… # 3 MT
Weight………………. 1325 Lbs
Dimensions…………… 73”(l) x 30”(w) x 58”(h)
EQUIPPED WITH:
6″ – 3 Jaw Chuck
8″ – 4 Jaw Chuck
(4) Way Tool Post
Coolant System
Steady Rest
Rear Splash Guard
Tailstock
10” Face Plate
6” & 8″ Back Plate
Thread Dial
Follow Rest
Rapid Foot Brake
One Shot Lube
6” – 3 Jaw Scroll Chick
Tools & Tool Box
Operation Manual
MACHINE FEATURES
1-1/2″ Spindle Hole
Gap Bed Design
H & G Headstock Gears
H & G Bedways
H & G Crossfeed Screw
Inch/Metric Threading w/Dual Scales
Built-in Safety Overload Clutch
Main Spindle Equipped w/(2) Precision Taper Roller Bearings
OPTIONAL ACCESSORIES:
8″ – 3 Jaw “Set Tru” Chuck
8″ – 6 Jaw “Set Tru” Chuck
Chuck Guard
Quick Change Toolpost w/(4) Holders
Taper Turning Attachment
5C Collet Closer
Work Light
Single Saddle Stop
(4) Position Saddle Stop
(2) Axis Newall Digital Readout – Installed
COMMENTS:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Locations
TERMS: Check w/Order
All prices subject to change without notice
