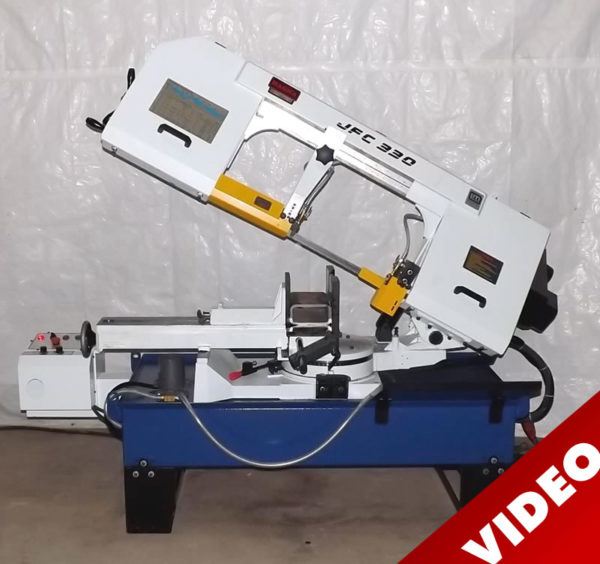

13″ x 19″ MAGNA … HORIZONTAL BANDSAW

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model: JFC-330

Type:  Swivel Head

Year: New

SPECIFICATIONS:

Round At 90……… 13”
Round At 30……… N/A
Round At 45……… N/A
Rec. Or Sq. At 90… 5” x 19”
Rec. At 30………. N/A
Rec. At 45………. N/A
Blade Size………. 1” x .035” x 150”
Blade Speed(VS)….. 98 – 393 FPM
Motor Size………. 2 HP-220V-Single Or 3 Phs
Weight………….. 1100 Lbs

EQUIPPED WITH:

Wired Single Or Three Phase
Variable Speed
(2) Way Swivel Head
Variable Down Feed Speed
Coolant System
Blade Guides
Head Control Cyclinder
Quick Positioning Vise
Overload Protection
Automatic  Shut-Off
(1) Bi-metal Blade

COMMENTS:

U.S.A. IMPORTER – DISTURBITION & PARTS CENTER

Need A Part !
Have A Technical Question !

CALL:  IMCO At 614-914-5087

F.O.B.:  Columbus, Ohio

TERMS:  Check w/Order

All prices subject to change without notice







SKU: 10143 Category: Horiz. Band Saws - New & Used
