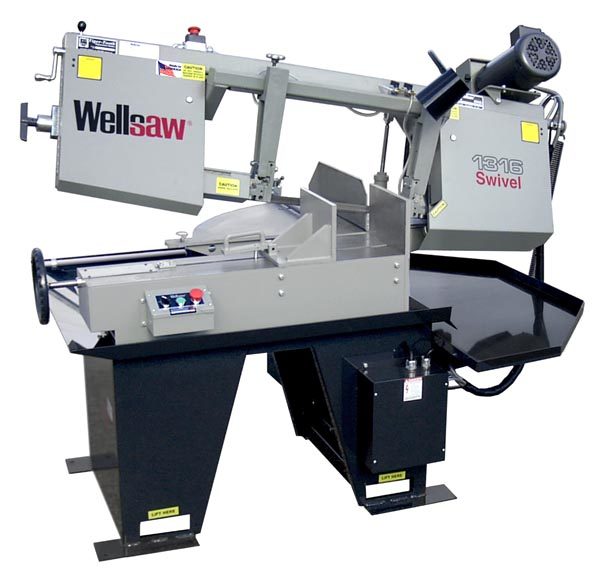

Model: 1316-S-EXT … Variable Speed
Type: “Scissors” … Manual
Year: New
SPECIFICATIONS:
Cutting Capacities:
Round
(Max. Height)… 13”
at 90 Degrees… 13”
at 45 Degrees… 13” (R)
at 60 Degrees… 13″ (R)
Rectangle
(Max. Width)…. 18”
at 90 Degrees… 13” X 18”
at 45 Degrees… 13” X 18” (R)
at 60 Degrees… 13″ x 14-1/2″ (R)
Bead Height………. 35″
Blade Size:……… 1” X .035” X 15’ 6”
Blade Speed(VS)….. 70 – 375 SFPM
Motor Size:……… 3 HP-220/440V-3 Phs Or
2 HP-115/230V-1 Phs
Weight:………….1700 Lbs
EQUIPPED WITH:
Saw Head Swivels On Precision Ball Bearings
60 Degree Saw Head Mitering
Variable Hydraulic Feed
Combination Reduction Gearbox & Perimeter Ring Gear Blade Drive
Infinity Variable Blade Speed
Overload & Undervoltage Protection
Auto Shut Off – End Of Cut
OSHA Blade Guarding
Large Protractor For Accurate Angle Selection
5’ X 18” Infeed Roller Conveyor
Work Light
Spring Loaded Carbide Guides w/Rollers
Coolant System w/Coolant
Powered Blade Brush
Quick Acting Vise
Adjustable Stock Stop
OPTIONAL ACCESSORIES AVAILABLE: P.O.R.
Powered Vise (Manual Control)
Powered Frame Lift (Manual Control
Combination Powered Vise & Frame Lift
Overhead Bundle Clamp (Air Powered)
Flush Hose
Variable Frequency Speed
Set Of (4) Casters – (2) Locking
Leveling / Vibration Mounts
MQL Lubricant System
Blade Break / Stall Switch
Laser Pointer
18” “Mid Duty” (250#) Stock Stand
6” Wide Roller “Heavy Duty” (1000 #) Stock Stand
12” Wide Roller “Heavy Duty (1000 #) Stock Stand
5” X 18” Non-Powered Roller Conveyor
5” X 24” Non-Powered Roller Conveyor
10’ X 18” Non-Powered Roller Conveyor
10’ X 24” Non-Powered Roller Conveyor
COMMENTS: Mfg. In U.S.A.
