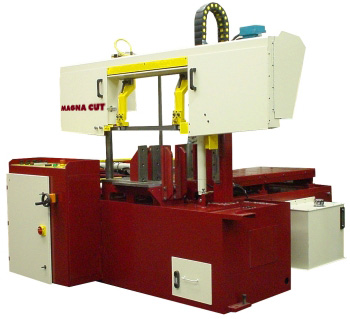

Model: 360-HFA… Step Pulley.
Type: Double Column … Fully Automatic
Year: New
SPECIFICATIONS:
Cutting Capacity:
Round:
Max. Height…..13”
at 90 Degrees…13”
Rectangle:
Max. Width……18”
at 90 Degrees…13” x 18”
Blade Size:………..1-1/4” x 14’-6”
Blade Speed(5)……..60-320 SFM
Motor Size:………..5 HP – 220/440V – 3 Phs
Weight:……………2600 Lbs
EQUIPPED WITH:
Fully Automatic
Full Stroking Hydraulic Vises
Double Column Design w/Linear Bearings
Hydraulic “Automatic” Shuttle Vise
Rear “Shuttle” Vise w/19” Stroke … (4) Strokes Max
Front “Clamping” Vise
Parts Counter (Up to 9999 parts)
Set Travel Up & Down
Adjustable Hydraulic Feed
Blade Overload Sensor
Automatic Shut Off at End of Cut Cycle
Hydraulic Controlled Head (Up & Down)
Powered Blade Brush
Flood Coolant System
Instruction & Parts Manuals
COMMENTS:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need A Part ?
Have A Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Columbus, Ohio
TERMS: Check w/Order
All prices subject to change without notice
