120 TON SCOTCHMAN ... IRONWORKER
Click to enlarge
Home Ironworkers Ironworkers - New & Used 120 TON SCOTCHMAN … IRONWORKER
36" CONTROLLED AUTOMATION ... DRILL LINE
36" CONTROLLED AUTOMATION ... DRILL LINE
Back to products
44" CONTROLLED AUTOMATION ... BEAM DRILLING LINE
44" CONTROLLED AUTOMATION ... BEAM DRILLING LINE

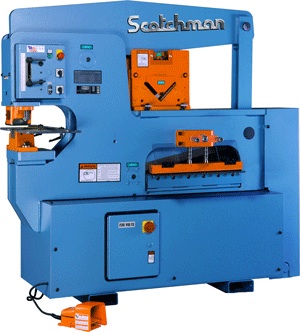

120 TON SCOTCHMAN … IRONWORKER

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model: 12012-24M … (3) Work Stations
Punch Capacity: 1-1/2” Hole Thru 1” Plate
Type: Hydraulic
Year: New

SPECIFICATIONS:

Punching:
Max. Tonnage………. 120 Ton
Punch Capacity…….. 1-1/2” Hole Thru 1” Plate
Throat……………. 12″

Bar Shear:
Flat Max. Thickness… 12″ x 1”
Flat Max. Width……. 24” x 1/2”

Angle Shear:
Max. Size…………. 6′ x 6′ x 1/2″

Motor Size………… 5 HP – 220/440V – 3 Phs
Weight……………. 5205 Lbs
Dimensions………… 77″(l) x 28″(w) x 73″(h)

EQUIPPED WITH:

Round Punch & Die Max. 1-1/4” Diameter
Die Holders w/2″ & 2-1/2″ Inserts
Punch Nut w/Wrench & Stripper
Remote Foot Pedal
Shear Table w/Miter Fence
24″ Flat Bar Shear w/(4) Way Reversible Blade
All Standard Safety Guards

MACHINE FEATURES:

(3) Separate Work Stations:

Punching
Flat Bar Shear
Open Station Equipped w/Angle Shear

Punch Jog Control
Adjustable Electric Stroke Controls w/Scale
Keyed Punch Ram
Forklift Accommodation
Emergency Stop Button w/Lock & Tag Out

OPTIONAL ACCESSORIES AVAILABLE

5 HP – 220V – 1 Phs
Work Light
12″ Brake Attachment w/2″ Opening Bottom V-Die
12″ Brake Table w/Scale & Squaring Arm
24″ Brake Attachment w/2″ Opening Bottom V-Die
24″ Brake Attachment w/2″ Opening Bottom V-Die
Brake Length Gauge w/Scale
Pipe Notcher Housing
Punch Pusher for Pipe Notcher
Upper & Lower Sch. 40 Notching Dies (3/4″ – 2″ each)
90Ëš Vee Notcher
Rod Shear (1-1/4″ Rd or 1″ Sq)
Square Tube Shear (1/2″ – 2″ x 14 ga)
Fabrication 24″ Brake Package

24″ Brake Attachment
24″ Brake Table w/Scale & Squaring Arm
Brake Table Gauge w/Scale

COMMENTS:  Mfg. In USA

“USA”  IMPORTER – DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL:  IMCO at 614-914-5087

TERMS:  Check w/Order

All prices subject to change without notice

SKU: 9740 Category: Ironworkers - New & Used
