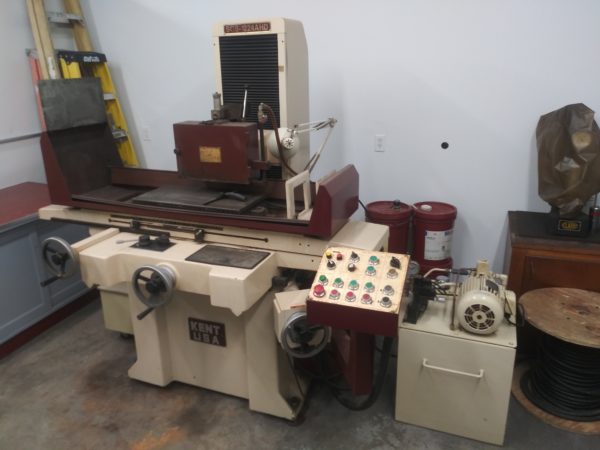

Model: SGS-1224-AHD
Type: (3) Axis Automatic
Year: 1993
SPECIFICATIONS:
Table Size………………… 12” x 24”
Longitudinal Travel………… 24-1/2”
Cross Travel………………. 13-1/2”
Vertical Travel……………. 12-5/8”
Center Line Spindle To Table…
Table Load w/Chuck…………. 1000 Lbs
Wheel Size………………… 14” X 1-1/4” X 5”
Motor Size Voltage…………. 5 HP – 220/440V – 3 Phs
Axis……………………… (3) Axis Automatic
Table Weight Capacity………. 1000 Lbs
Weight……………………. 4400 Lbs
Dimensions (LxWxH)…………. 70″ x 83-1/2″ x 89″
EQUIPPED WITH:
12” x 24” Electro-Magnetic Chuck & Control
Magnetic Separator & Coolant System
Overhead Wheel Dresser
Grinding Wheel
Halogen Work Light
Auto Incremental Downfeed
Auto Lube
