11" x 13-1/2" HYD-MECH ... HORIZONTAL BANDSAW
Click to enlarge
Home Saws - New & Used Horiz. Band Saws - New & Used 11″ x 13-1/2″ HYD-MECH … HORIZONTAL BANDSAW
8" BALDOR ... BENCH BUFFER
8" BALDOR ... BENCH BUFFER
Back to products

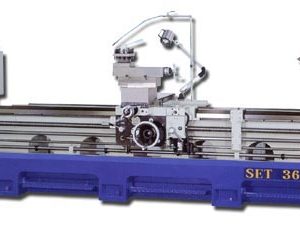

32" x 60" ACRA ... LATHE 6" SPINDLE HOLE
32" x 60" ACRA ... LATHE 6" SPINDLE HOLE

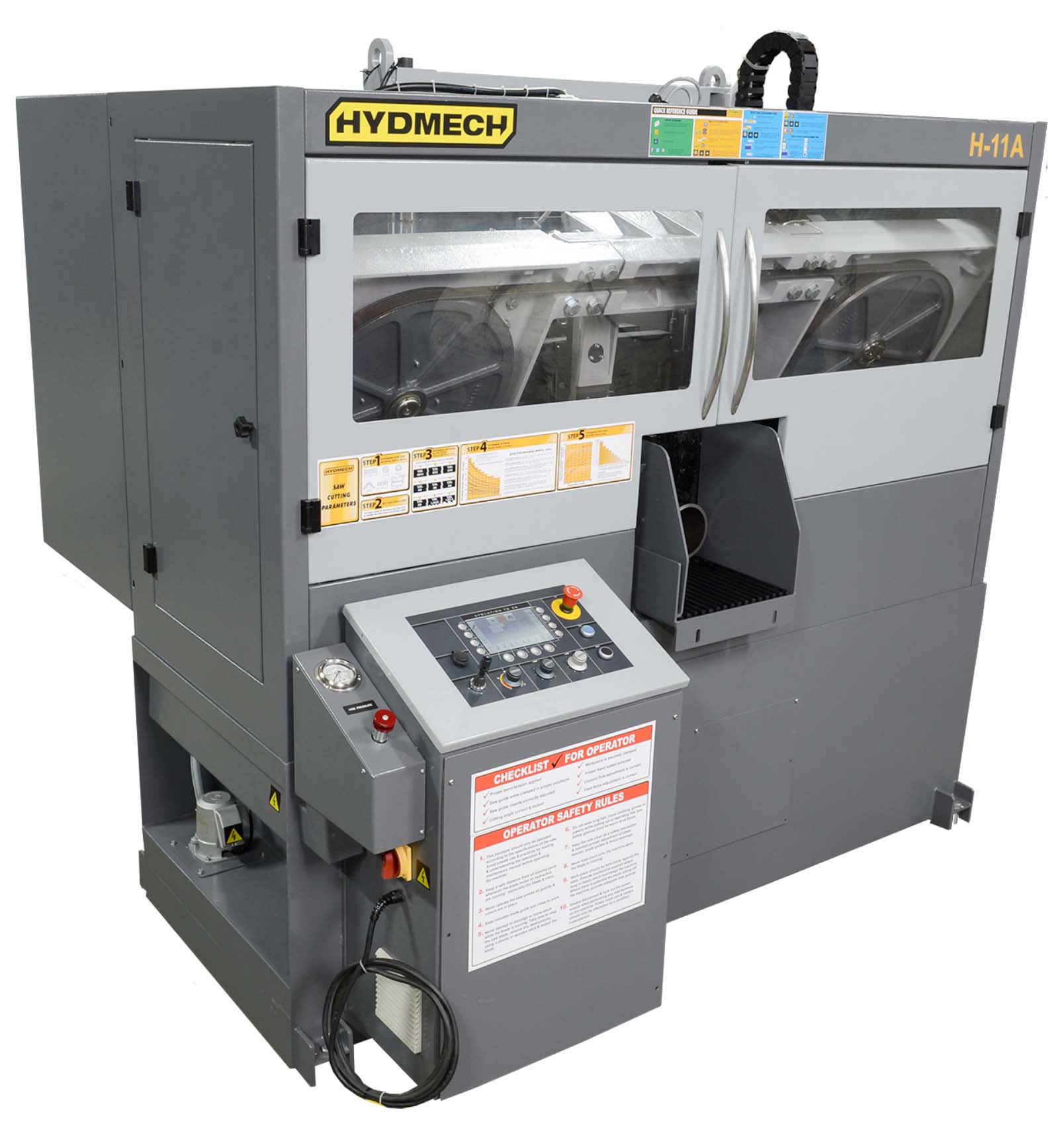

11″ x 13-1/2″ HYD-MECH … HORIZONTAL BANDSAW

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model: H-11-A
Type: Dual Column – Automatic
Year: New

SPECIFICATIONS:

CUTTING CAPACITY:

Round Or Square
   At 90 Degrees…… 10”
Rectangle
   At 90 Degrees…… 11” x 13-1/2″
Work Height……….. 33”
Blade Size………… 1-1/4” x 14’7”
Blade Speed(V.S.)….. 49 -380 SFM
Motor Size………… 6 HP – 240/480V – 3 Phs.
Weight……………. 4700 Lbs.

EQUIPPED WITH:

MACHINE FEATURES:

Dual Post
Windows 5.0

(99) Memory Storage
(5 Jobs Can Run Consecutively)
Touch Screen
Manual & Automatic Modes
Digital Displays

Variable Frequency Drive
“Hydraulic” Positive Downfeed
“Manual” Blade Tension
Blade Breakage Switch
Blade Deviation Monitor
Out Of Stock Switch

STANDARD EQUIPMENT:

(2) Hydraulic Full Strocking Vises

(1) w/ 90-19”) Shuttle Stroke

Chip Auger
Coolant System
Guide Arms
Power Blade Brush
Split Front Vise
Work Light
Laser Light  (Along Blade)

OPTIONAL ACCESSORIES AVAILABLE:

Full Capacity Overhead Bundle (2) Vises
Mist System
Vertical Rollers
Variable Vise Pressure
Idler Conveyor (10’ Section)

COMMENTS:  Mfg. In North America

“USA”  IMPORTER  – DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL:  IMCO at 614-914-5087

F.O.B.:  Location

TERMS:  Check w/Order

All prices subject to change without notice

SKU: 11703 Category: Horiz. Band Saws - New & Used
