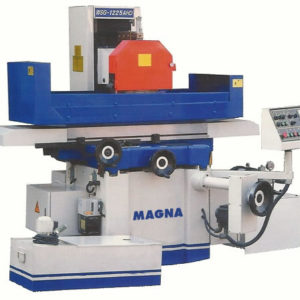

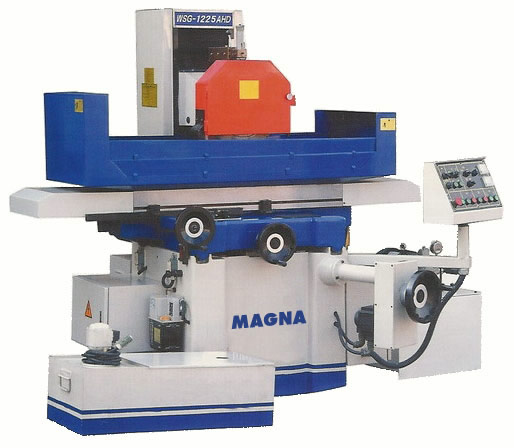

Model: WSG
Type: (3) Axis Automatic
Year: New
SPECIFICATIONS:
Table Size………………… 9.84” x 19.69”
Longitudinal Travel…….(X).. 20.05”
Cross Travel…………..(Y).. 10.83”
Vertical Travel………..(Z).. —
Center Line Spindle To Table… 17.72”
Wheel Size………………… 8” x 3/4″ x 1-1/4″
Motor Size Voltage…………. 2 HP – 220/440V – 3 Phs
Axis……………………… (3) Axis Automatic
Table Weight Capacity………. 400 Lbs
Weight……………………. 3960 Lbs
Dimensions………………… 79″L x 83″W x 86″H
EQUIPPED WITH:
10″ x 20” Electro-Magnetic Chuck, Control & Demagnetizer
Coolant System & Magnetic Separator
Overhead Parallel Wheel Dresser
Grinding Wheel
Wheel Flange
Full Length Splash Guard
Vertical Elevation Handle On Base
Wheel Balancing Stand & Arbor
Leveling Pads
Tool Box
Work Light
Machine Features
Cross Feed “Ball Screw” Powered by AC Motor
Vertical Feed Powered by Servo Motor
Heavy Duty Spindle – (4) Piece “Pre-Loaded” Precision Angular Contact For Accuracy
Slideways – Turcite Coated For Accuracy
Auto Lubrication
Cast Iron Table, Saddle & Base
Hydraulic Table w/Rack & Pinion For Hand Operation
Table Speed Control – Presetable “Hydraulic”
COMMENTS: Mfg. in China
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject change without notice
