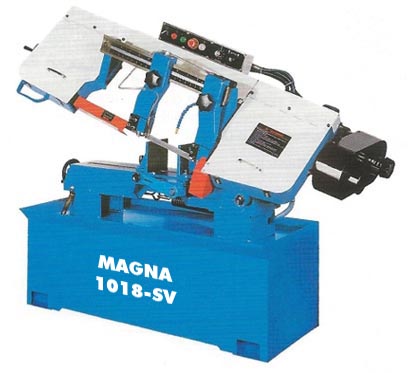

Model : 1018-SV
Type: Scissors -Manual
Year: New
SPECIFICATIONS:
Cutting Capacity:
Rounds:
Max. Height…. 10”
at 90 Degree… 10”
at 45 Degree… 6” (L)
Rectangle:
Max. Width….. 18”
at 90 Degree… 10” x 18”
at 45 Degree… 10” x 9” (L)
Blade Size:………. 10’2” x 1”
Blade Speed(VS)…… 73 – 312 FPM
Motor Size:………. 2 HP-220V-1 or 3 Phs
Weight:………….. 775 Lbs
EQUIPPED WITH:
“H & G” Worm Gears
Automatic Shut Off
45 Degree Swivel Vise
Down Feed … Variable Hydraulic Control
(1) Carbon Blade
Blade Chip Brush Safe Guards
Blade Tension Adjustment
COMMENTS:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
