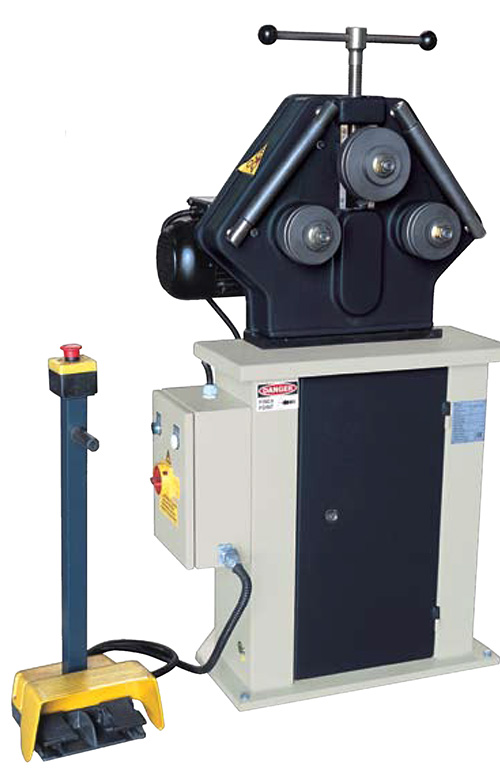

Model: ARS-1.5 … PK-30
Type: Single Pinch
Year: New
SPECIFICATIONS:
Shaft Diameter….. 1-3/16”
Roll Diameter…… (UPR/LWR) 5.8”/4.6”
Driven Rolls……. 2 (LOWER)
Rolling Speed…… 2 (10 & 20 FPM)
Work Plane……… HORIZONTAL /
Adjustable Rolls… 1
Motor………….. 1-1/4 HP – 220/440V – 3 Phs
Weight…………. 570 Lbs
CAPACITIES:
Flats Hard……… 3/8”x2”x24”Dia
Flats Easy……… 3-1/8” x 5/8” x 28” Dia
Square Bar……… 1-3/16” x 36” Dia
Angle Out………. 1-1/2” x 3/16” x 24” Dia
Angle In……….. 1-3/8” x 3/16” x 24” Dia
Tee Out………… 2” x 1/4” x 24” Dia
Tee In…………. 2” x 1/4” x 24” Dia
Channel Out…….. 2” x 1” x 3/16” x 20”Dia
Channel In……… 2” x 1” x 3/16” x 26” Dia
Round Bar………. 1-3/16” x 36” Dia
Pipe…………… 1-1/2” x 24” Dia
Tubing Round……. 2-3/8” x 16 ga x 40” Dia
Tubing Square…… 1-1/2” x 1-1/2” x 48” Dia
Tubing Rectangle… 2” x 1-3/16” x 1/8” x 24” Dia
EQUIPPED WITH:
Dual Foot Control
Emergency Stop
Cabinet Base w/Door
Set of Universal Tooling
MACHINE FEATURES:
Single Pinch
H & G Shafts & Gears
Horizontal/Vertical
Rugged Steel Frame
(2) Speeds
(2) Driven Rolls (Lower)
Manual Adjustment of Top Roll & Guide Rolls
OPTIONAL ACCESSORIES:
Variable Speed – 1 PHS
