X=36" - Y=12" - Z=16" ACRA ... VERTICAL MILL
Click to enlarge
Home Milling Machines - New and Used Bridgeport Type Mills New & Used X=36″ – Y=12″ – Z=16″ ACRA … VERTICAL MILL
500 LBS. ... PRIME MOVER  PALLET JACK
500 LBS. ... PRIME MOVER PALLET JACK
Back to products
1-1/2" x 1-1/2" x 3/16" SAHINLER ... SINGLE PINCH
1-1/2" x 1-1/2" x 3/16" SAHINLER ... SINGLE PINCH

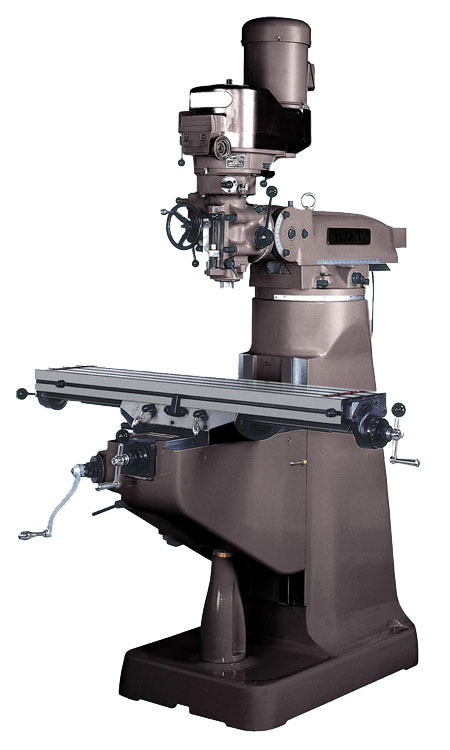

X=36″ – Y=12″ – Z=16″ ACRA … VERTICAL MILL

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model: AM-2-J
Type:  Knee Mill
Year: New

SPECIFICATIONS:

Table Size……………. 9” x 48”
Longitudinal Travel..(X).. 36”
Cross Travel………(Y).. 12”
Vertical Travel….. (Z).. 16”
Quill Travel………….. 5”
Dist. Spindle to Table…. 16-3/4”
Spindle Taper…………. R-8
Spindle Speeds (VS)……. 60 – 4200 RPM
Motor Size – Voltage…… 3 HP – 220/440V – 3 Phs
Table Weight Capacity….. 750 Lbs
Weight……………….. 2095 Lbs
Dimensions……………. To Be Advised

EQUIPPED WITH:

Way Covers
Draw Bar
One Shot Lube
Operation Manual

MACHINE FEATURES:

Meehanite Casting
H & G on X & Y Slideway
H & G Table
Turcite Coating on X & Y Axis Slideway
Dove Tail Bed Ways
Spindle Supported by Class 7 Bearings (0.0002” Runout)
Hardened & Ground Bed Ways Turcite Coated
“Back” Gear for Heavy Cutting
(4) Way Tilt Head
Head Tilts … 90 deg L & R – 45 deg F & B
Precision Lead Screw
Hard Chrome Quill

OPTIONAL ACCESSORIES:

(2) Axis Newall Digital Readout “DP-700”
Installation of (2) Axis Digital Readout
(3) Axis Newall Digital Readout “DP-700”
Installation of (3) Axis Digital Readout
(52) Pc Clamp Set
Right Angle Attachment
6” Riser Block
8” Riser Block
(5) Collets
Table Power Feed – “V.S.”… (X) Axis
Table Power Feed – “V.S.”… (Y) Axis
Knee Power Feed – “V.S.”…. (Z) Axis
6″ Kurt Precision Vise
6” Vise – Kurt Type w/Swivel Base
Automatic Draw Bar
Mitutoyo Quill “LCD” Readout

“USA”  IMPORTER – DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL: IMCO at 614-914-5087

F.O.B.:  Location

TERMS:  Check w/Order

All prices subject to change without notice

SKU: 12927 Category: Bridgeport Type Mills New & Used
