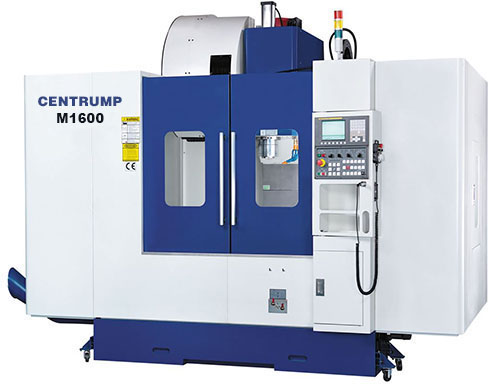

Model: M-1600L
Type: VMC
Year: New
SPECIFICATIONS:
Table Size……………… 31.5″ x 70.8″
Table Weight Cap………… 5500 Lbs
Table Travel………..(X).. 63″
Cross Travel………..(Y).. 39.3″
Head Travel…………(Z).. 31.5″
Rapid Traverse………….. 420/360 IPM
Spindle Nose To Table Top… 6.7″ – 38.1
Spindle Taper…………… Cat 50
Spindle Speed…………… 4500 RPM
Auto Tool Changer……….. (24) Station (Arm Type)
Motor Size……………… 25 HP – 220V – 3 Phs
Weight…………………. 30,800 Lbs
Control Type……………. Centroid M-400
EQUIPPED WITH:
Automatic Tool Changer (24) Station (Arm Type)
Coolant System
Air Blast System
Halogen Work Light
Chip Tray
Auto Lube System
Spindle Oil Cooler
Leveling Bolts & Pads
Tool Box w/ Tools
Operations Manual
MACHINE FEATURES:
Centroid M 400 Control … (Mfg. In U S A)
(3) Axis Simultaneous Contouring)
Excellent Quality – “High Precision”
“Extremely” Rigid – Meehanite Casting
(4) Box Ways – “Y” Axis
X, Y & Z Axis … Hardened & Ground Bed Ways
Turcite Coated Ways
Class “7” Spindle Bearings
Metal Telescopic Way Covers (X, Y & Z Axis)
(1) Year “Machine Parts” Warranty
(1) Year “Control” Warranty
CENTROID CONTROL:
Mfg. In USA
(3) Axis (Simultaneous Contouring)
Full Conversational (Shop Floor Programming) & “ G” Code (Fanuc) Programming
15” Color Monitor
RS-232 & Ethernet Parts
(1) GB Solid State Hard Drive
2000 Blocks (per Second) Look-A Head Speed
OPTIONAL EQUIPPED AVAILABLE: P.O.R.
(52) pc. Clamp Kit
Mist Coolant System
Upgrade From 8,000 RPM To 10,000 RPM
28 KVA Transformer (440V – 480V)
(20) Pc. Cat 40 Retention Knobs
6” (Kurt Type) Vise w/ Swivel Base
6” Precision Kurt Vise
Chip Auger
Coolant Thru Spindle
Motor Upgrade 25 HP to 30 HP
SOFTWARE OPTIONS (CENTROID CONTROL)
Multiple Work Coordinate Systems
User Definable Macros & Sub Programs … Standard
Compression Tapping … Standard
Unlimited Part Program Size
4th Axis Software … Standard
Coordinate System Rotation
DXF In, CAD Drawing Input Software
Cutter Compensation … Standard
Intercon Off-Line Conversational Program (For Desktop Pc)
Engraving Software
DIGITIZING & PROBING
2D & 3D Digitizing Software (Includes Mold Magic Software)
DP-4 Probing Package
TT-1 Tool Touch Off Kit
Tool Room Package
DP-4 Probing Package
TT-1 Tool Touch Off Kit
Work Coordinate System
ACCESSORIES:
(100) Step MPG
Installation & Set-Up (Per Day) … Plus Travel Expenses
Control Training (Per Day) … Plus Travel Expenses
COMMENTS: Control Mfg. In USA
