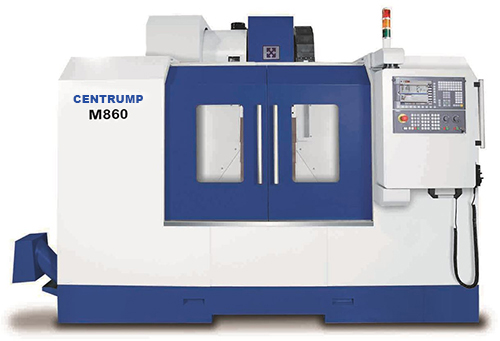

Model: M – 860
Type: VMC
Year: New
SPECIFICATIONS:
Table Size……………… 19.6″ x 38.6″
Table Weight Cap………… 1980 Lbs
Table Travel………..(X).. 33.8″
Cross Travel………..(Y).. 20″
Head Travel…………(Z).. 24″
Rapid Traverse………….. 640/480 IPM
Spindle Nose To Table Top… 5.9″ – 30″
Spindle Taper…………… CAT 40
Spindle Speed…………… 8000 RPM
Auto Tool Changer……….. (16) Station (Armless)
Motor Size……………… 15 HP – 220V – 3 Phs
Weight…………………. 9,900 Lbs
Dimensions……………… To be Advised
Control Type……………. Centroid M 400
EQUIPPED WITH:
Full Metal Enclosure
(16) Station ATC (Armless)
Coolant System
Air Blast System
Halogen Work Light
Chip Tray
Auto Lube System
Spindle Oil Cooler
Chip Auger (Screw Type)
Leveling Bolts & Pads
Tool Box w/ Tools
Operations Manual
MACHINE FEATURES:
Centroid M-400 Control … (Mfg. In USA)
(3) Axis simultaneous Contouring)
Excellent Quality – “High Precision”
“Extremely” Rigid – Meehanite Casting
(4) Box Ways – “Y” Axis
X, Y & Z Axis … Hardened & Ground Bed Ways
Turcite Coated Ways
Class “7” Spindle Bearings
Metal Telescopic Way Covers (X, Y & Z Axis)
(1) Year “Machine Parts” Warranty
(1) Year “Control” Warranty
CENTROID CONTROL:
(3) Axis (Simultaneous Contouring)
Full Conversational (Shop Floor Programming) & “ G” Code (Fanuc) Programming
15” Color Monitor
RS-232 & Ethernet Parts
(1) GB Solid State Hard Drive
2000 Blocks (per Second) Look-A Head Speed
OPTIONAL ACCESSORIES:
OPTIONAL ACCESSORIES (MILL)
(52) pc. Clamp Kit
Mist Coolant System
Upgrade From 8,000 RPM To 10,000 RPM
(20) Pc. Cat 40 Retention Knobs
6” (Kurt Type) Vise w/ Swivel Base
6” Precision Kurt Vise
Coolant Thru Spindle
SOFTWARE OPTIONS (CENTROID CONTROL)
User Definable Macros & Sub Programs… Standard
Compression Tapping……………….. Standard
Scaling & Mirroring
Unlimited Part Program Size
4th Axis Software…………………. Standard
Coordinate System Rotation
DXF In, CAD Drawing Input Software
Cutter Compensation……………….. Standard
Intercon Off-Line Conversational Program (For Desktop Pc)
Engraving Software
DIGITIZING & PROBING
2D & 3D Digitizing Software
(Includes Mold Majic Software)
DP-4 Probing Package
TT-1 Tool Touch Off Kit
Tool Room Package:
DP-4 Probing Package
TT-1 Tool Touch Off Kit
Work Coordinate System
ACCESSORIES:
(100) Step MPG
Installation & Set-Up… (Per Day)
Control Training…….. (Per Day)
Plus Travel Expenses
COMMENTS: Control Mfg. In USA
