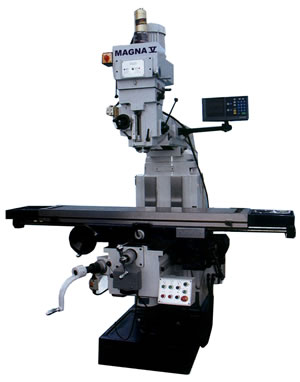

X=47" - Y=15" - Z=20" MAGNA ... VERTICAL MILL (VS)
Click to enlarge
Home Milling Machines - New and Used Bridgeport Type Mills New & Used X=47″ – Y=15″ – Z=20″ MAGNA … VERTICAL MILL (VS)
1/4" x 10' US INDUSTRIAL ... PLATE SHEAR (Copy)
Back to products
14"6" Powerband Matrix II Welded
14"6" Powerband Matrix II Welded

X=47″ – Y=15″ – Z=20″ MAGNA … VERTICAL MILL (VS)

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model:  Magna V … Variable Speed
Type: Knee Mill
Year: New

SPECIFICATIONS:

Table Size……………. 11.8″ X 59″
Longitudinal Travel..(X).. 47″
Cross Travel………(Y).. 15″
Vertical Travel……(Z).. 20″
Quill Travel………….. 6″
Dist. Spindle to Table…. 20″
Spindle Taper…………. #40
Spindle Speeds(VS)…….. 60 – 3600 RPM
Table Weight Capacity….. 2200 Lbs
Motor Size and Voltage…. 5 HP – 220V – 3 Phs
Weight ………………. 4950 Lbs
Dimensions……………. To Be Advised

EQUIPPED WITH:

Variable Speed
33-1/2″ (Extra Wide) Knee
Meehanite Castings
2 HP “Gear Box” Table Feed (X) Axis
Power Elevation To Knee
Automatic Lube
Back Gear For Heavy Cutting
Head Swivels 90 Degrees Left & Right
Square Ways
Draw Bar
6″ Kurt Type Vise
“Back Gear” For Heavy Cutting
Flood Coolant System
Table “Tool Trays”
Tool Box w/Tools

OPTIONAL ACCESSORIES AVAILABLE … P.O.R.

Halogen Work Light
(6) End Mill Adapters (3/16″ – 1″)
Table Power Feed (Y)
6″ Kurt Precision Vise
6″ Riser Block
(2)Axis Newall C80 DRO (Installed)
Installation Of (2) Axis DRO
(3) Axis Newall C – 80 Digital Readout
Installation Of (3) Axis DRO

COMMENTS: Mfg. in Europe

“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL:  IMCO at 614-914-5087

F.O.B.: Location

TERMS: Check w/Order

All prices subject to change without notice

SKU: 7950 Category: Bridgeport Type Mills New & Used
