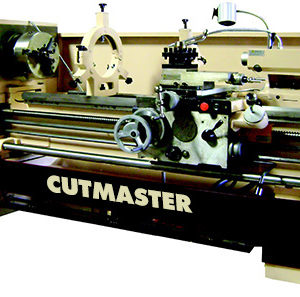

20" x 40" CUTMASTER ... LATHE 4-1/8" SPINDLE HOLE
20" x 40" CUTMASTER ... LATHE 4-1/8" SPINDLE HOLE

X=37″ – Y=14″ – Z=18″ SHARP … HORIZONTAL MILL

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model:  UH-3
Type:  Horizontal Mill
Year:  New

SPECIFICATIONS:

Table Size……………. 12” x 51”
Longitudinal Travel..(X).. 37-3/8”
Cross Travel………(Y).. 14-13/16”
Vertical Travel……(Z).. 18-1/2”
Spindle Nose to Table….. 0 – 18-1/2″
Spindle Taper…………. #50
Spindle Speeds (12)……. 35 – 1382 RPM
Motor Size……………. 7.5 HP – 220V Or 440V
Weight……………….. 5200 Lbs
Dimensions (LxWxH)…….. 117″ x 69″ x 68″

EQUIPPED WITH

Coolant System
Auto Lube
(3) Axis Powerfeed
1-1/4″ Horizontal Arbor
(2) Arbor Supports
Tool Box w/Tools
Manuals

MACHINE FEATURES

Meehanite Casting
H & G Box Ways
Climb Milling Compensiter
+/- 45 Degree Universal Table
Class 7 Spindle Bearings

OPTIONAL ACCESSORIES:

Newall DRO “DP-700” … (2 Axis)
Installation of DRO
Newall DRO “DP-700” … (3 Axis)
Installation of DRO
6” Kurt Type Vise
6” Kurt Vise w/Swivel Base
Power Draw Bar
Halogen Work Light
(52) Pc Clamping Kit

“USA”  IMPORTER – DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL:  IMCO at 614-914-5087

F.O.B.:  Location

TERMS:  Check w/Order

All prices subject to change without notice

SKU: 11932 Category: Horizontal Mills ... Heavy Duty
