Model: BP-3-S … VS
Type: Knee Mill
Year: New
SPECIFICATIONS:
Table Size……………. 9” x 49″
Longitudinal Travel..(X).. 35”
Cross Travel………(Y).. 12”
Vertical Travel……(Z).. 16”
Quill Travel………….. 5”
Dist Spindle To Table….. 0” – 18”
Spindle Taper…………. R-8
Spindle Speeds(16)…….. 80 – 5400 RPM
Table Weight Capacity….. 650 Lbs
Weight……………….. 2,250 Lbs
Motor Size-Voltage…….. 3 HP – 220/440V – 3 Phs
Dimensions……………. To Be Advised
MACHINE FEATURES
Meehanite Casting
Quill Power Feed
H & G Table
H & G Dovetail ways
Hard Chrome Quill
Reversing Switch
Spindle Brake
STANDARD EQUIPMENT
(4) Way Tilt Head
“Back Gear” for Heavy Cutting
Back & Front Way Covers
One Shot Lube
Draw Bar
Operation Manual
Tool Box
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
Unique DRO – Installed…………… (2 Axis)
Newall DRO “DP-700″……………… (2 Axis)
Installation of DRO……………… (2 Axis)
Newall DRO “DP-700″……………… (3 Axis)
Installation of DRO……………… (3 Axis)
(5) Piece Collet Set (1/4″ – 3/4”)

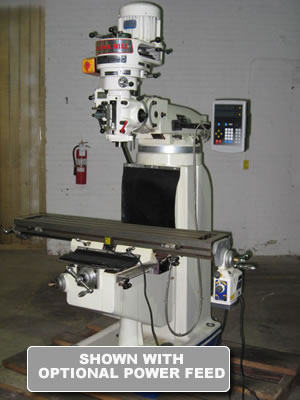

Table Power Feed “VS” (X)
Table Power Feed “VS” (Y)
6″ Vise – Kurt Type
Automatic Draw Bar – (Installed)
Mitutoyo Quill “LCD” Readout (Installed)
COMMENTS:
