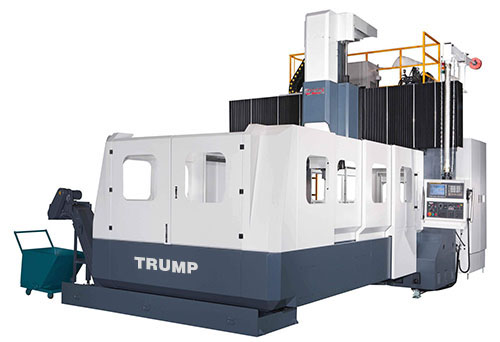

Model: D-1703
Type: Double Column VMC
Year: New
SPECIFICATIONS:
Table Size……………… 59” x 118”
Table Travel………..(X).. 118”
Table Travel………..(Y).. 63”
Head Travel…………(Z).. 36”
Distance Between Columns…. 67″
Spindle Nose To Table Top… 7.8” – 47.2″
Motor Size……………… 20 HP – 220V – 3 Phs
Spindle Speeds………….. 60 – 4500 RPM
Automatic Tool Changer…… Optional
Spindle Taper…………… CAT 50 / BT 50
Table Weight Capacity……. 18,000 Lbs
Rapid Traverse………….. 472/393 IPM
Weight…………………. 72,000 Lbs
Control Type……………. Fanuc Oi-MB
EQUIPPED WITH:
Fanuc Oi-MB CNC Control
RS-232 Port
Electric Handwheel
Chain Type Chip Conveyor & Chip Tray
High Pressure Auto Lube
Coolant Pump & Water Tank
Air Blasting
Air Count Balance
Precision Inspection Chart
Spindle Coolant System
“Z” Axis Oil Pressure Balance System
Work Light & Operation Light
Leveling Screws & Pads
Tool Box w/Tools
Operation Manual
MACHINE FEATURES
Fully Enclosed Guarding
Automatic Power Off System
H & G Box Way
Double Nut Precision Ball Screws H & G for Accuracy & Long Lasting
Meehanite Casting
Telecsopic Way Covers All (3) Axis
Extended Head
OPTIONAL ACCESSORIES AVAILABLE:… P.O.R.
NC Rotary Table
Automatic Tool Setting Device
90 Deg. Slide Milling Head
90 Deg. Slide Milling Head w/Auto Angle & Hydr. Tool Holder
Universal Milling Head
45 Deg. Angular Milling Head
(32) Chain Type Magazine
(32) Automatic Tool Changer
(40) Automatic Tool Changer
