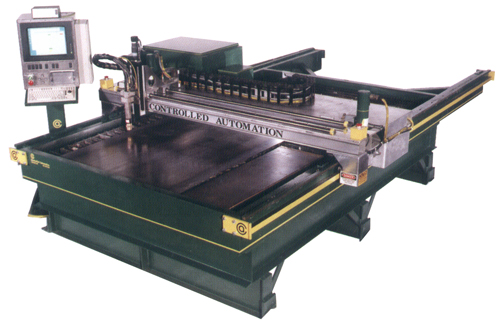

Model: Plasmax
Type: Plasma / Oxy Fuel
Year: New
SPECIFICATIONS:
Max. Sheet Size ………. 8′ x 20’
Max. Positioning Speed … 1400 IPM
Position Accuracy …….. +/- 0.008″
Programming Accuracy ….. 0.0004″
CNC Control ………….. PC Based
Weight …(Approx)…….. 15,000 Lbs
Year ………………… 2010
Power Source …………. HyperTherm “HPR260” Hy-Def Plasma w/Manual Gas Console
Output Current ……….. (Amps)… 30-45-80-130-200-260 100% Duty Cycle At 260 Amps
CUTTING CAPACITIES:
In Mild Steel:
Quality Production Cut … 20 ga – 1-1/4””
Max. Pierce in ……….. 1-1/2”
Max. Edge Start ………. 2-1/2”
Plasma Gas …………… Air, O2, ArH2N2
Shield Gas …………… O2/N2, N2, AIR-CH4
EQUIPPED WITH:
HyperTherm “HPR-260” Hy-Definition Plasma Power Source w/Manual Gas Console
Gantry Style
Conversational PC Based Control w/Microsoft Window “XP” Full Featured
Monoblock Frame
Dual Side Drive Gantry (X-Axis)
Aluminum Tubular Bridge (Y-Axis)
AC Servo Drives on all Axis’s
High Speed Rapid Traverse System (1400 IPM)
Industrial Grade Reduced Backlash Gears
Power Track System for Cable & Hose Routing
Gantry Mounted to Precision Guide Rails
Guide Rails & Drive Track Covered with High-Temp Bellow Covers
Zoned Downdraft Table w/Dross Trays
COMMENTS: Mfg. In The U.S.A.
