Model: M74125A
Year: NEW
SPECIFICATIONS:
Chuck Dia…………… 49”
Chuck Life………….. 100%
Vertical Travel……… 24”
Wheel Size………….. 26” x 2.250” x 6.00”
Grinding Wheel RPM…… 750 RPM
Magnetic Chuck RPM(2)… 16 – 24 RPM
Motor Size………….. 75 HP – 220V – 3
EQUIPPED WITH:
Electro Magnetic Chuck
U.S.A. Standard Electrics
(2) SPEED CHUCK … 16 – 24 RPM
WHEEL DRESSER
BALANCING ARBOR
COOLANT SYSTEM
WORK LIGHT
LEVELING WEDGES
INSTALLATION
TRAINING
OPTIONAL ACCESSORIES AVAILABLE: P.O.R.
Digital Read-Out System
Variable Speed Drive
Dust Mist Collector System
Automatic Paper Filtration System
Coolant Filtration System
Cortland Segment Chuck
440V Transformer
COMMENTS:
Mfg. In Europe

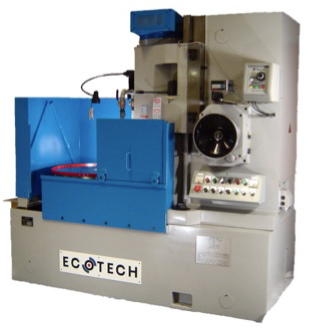

Catalog Photo
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need A Part ?
Have A Technical Question ?
Call: IMCO At 614-914-5087
F.O.B. Location
Terms: Check w/ Order
All prices subject to change without notice
