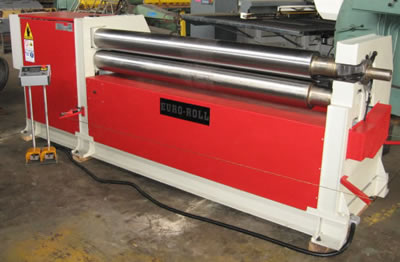

Model: ASM-S-140-12/6.0
Type: Hydraulic
Year: New
SPECIFICATIONS:
Roll Length:…………….. 50”
Top Roll Diameter:……….. 5.51”
Rolling Cap. (Mild Steel):… .250” (1/4”) 35,000 PSI Yield Material
Pre-Bend Cap.(Mild Steel):… .188” (3/16”)35,000 PSI Yield Material
Min. Diameter (Rolling):….. 8.26”
Min. Diameter (Pre-Bend):…. 8.26”
Number Of Rolls (Total):….. (3)
Number Of Rolls (Powered):… (2)
Rolling Speed:…………… 15 FPM
Motor:………………….. 4 HP – 220/440V – 3 Phs
Weight:…………………. 3000 Lbs
EQUIPPED WITH:
(3) Roll Initial Pinch
Mechanical Driven Via Electric Motor & Gear Reducer
Manual “Swing-Out” Of Top Roll
Hardened Rolls
Power Adjustment Of Back / Forming Roll Via Push Button
Pinch & Forming Rolls Incline For Cone Rolling
Cone Rolling Attachment
Manual Adjustment Of Bottom / Pinch Roll (Hand Wheel)
Movable Control Console Equipped With:
Push Button Control Of Forming Roll Position
Foot Pedal Control Of Roll Rotation
E-Stop Button
Digital Readout
Machine Perimeter E-Stop Cable
OPTIONAL ACCESSORIES AVAILABLE: … P.O.R.
Powered Adjustment Of Pinch Roll
Digital Readout For Adjustable Roll
Foot Pedal For Ball Rotation (In Lieu Of Push Buttons)
COMMENTS: Mfg. In Europe
“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B. Location
TERMS: Check w/Order
All Prices Subject To Change Without Notice
