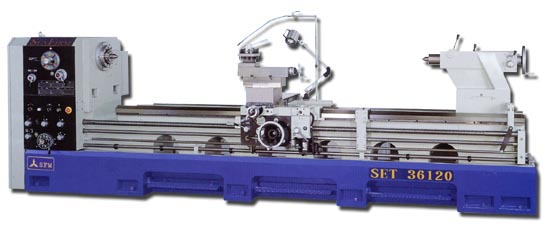

Model: SET
Type: Geared Head
Year: New
SPECIFICATIONS
Swing Over Bed……….. 36”
Swing Over Cross Slide… 27”
Swing in Gap…………. 48”
Dist Between Centers….. 280”
Max Turning Length……. 280”
Spindle Nose…………. A2-11
Spindle Hole…………. 6”
Bed Width……………. 18”
Spindle Speeds……….. 15 – 1000 RPM
Threading……………. Inch/Metric
Motor Size…………… 25 HP – 220/440V – 3 Phs
Tailstock Taper………. #5 MT
Gross Weight…………. 22,200 Lbs
STANDARD EQUIPMENT:
20” – 3 Jaw Chuck
Steady Rest
Follow Rest
(4) Way Tool Post
(4) Way Rapid Traverse
Inch/Metric Dials
Thread Chasing Dial
Section Splash Guard
Halogen Work Light
Coolant System
Tool Box w/Tools
MACHINE FEATURES:
6” Spindle Hole
Gap Bed Design
Spindle Clutch & Brake
Geared Head
Rear Chuck Mount
Automatic Lubrication
Solid Cast Iron Base
Hardened & Ground Head Stock, Gears & Bed Ways
OPTIONAL ACCESSORIES (P.O.R.):
20” – 4 Jaw Chuck
25″ – 4 Jaw Chuck
20” Steady Rest
Face Plate
Taper Attachment
Newall Digital Readout
