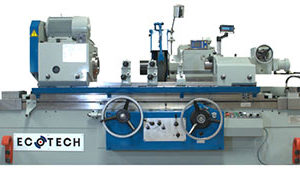

20" x 120" ECOTECH ... O.D. CYLINDICAL GRINDER UNIVERSAL.
20" x 120" ECOTECH ... O.D. CYLINDICAL GRINDER UNIVERSAL.
Back to products
Next product
45" x 80" - 120" - 160" ACRA TURN ... FLAT BED HOLLOW SPINDLE
45" x 80" - 120" - 160" ACRA TURN ... FLAT BED HOLLOW SPINDLE

35″ x 200″ – 240″ ACRA TURN … FLAT BED HOLLOW SPINDLE.

In stock

Request Quote
This product is already in quote request list
Browse the list
  • Description
Description

Model: CL-58A
Spindle Hole: 10″
Year: New
Type:  Hollow Spindle Flat Bed

SPECIFICATIONS:

Swing Over Bed……….. 35-3/8”
Swing Over Cross Slide… 20-7/16″
Swing In Gap…………. No Gap
Dist Between Centers….. 200″ – 240″
Max. Turning Length…… 200″ – 240″
Spindle Nose…………. A2-15
Spindle Hole…………. 10″
Bed Width……………. 22”
Spindle Ranges……….. 2
Spindle Speeds……….. 3-1200 RPM
Tailstock Taper………. #5 MT
Rapid Traverse……….. Yes
Motor Size…………… 25/30 HP – 220V – 3 Phs
Control Type…………. Fanuc OiTD
Weight………………. 29,100 – 32,000 Lbs
Dimensions…………… To be Advised

EQUIPPED WITH:

MACHINE FEATURES:

Mazak Design – “Flat Bed”
10” Spindle Hole
Heavy Duty (2) Step Transmission w / Helical Reducing Gear For Heavy Duty Cuts
Rigid Construction  (Meehanite Casting)
Double V-Slideways

STANDARD EQUIPMENT:

Fanuc Oi-TD CNC Control  NOTE:  With Manual i Guide
10.4” LCD Monitor
T-Slotted Cross Slide
Chuck Ready (Front & Back)
Choice Of V-8 Turret (Front) Or H-4 Turret (Rear)
Two Doors
Full Length Splash Guard
Auto Lubrication
Coolant System
Chip Conveyor (Rear) & Chip Cart
Halogen Light
Tailstock (Movable) Via Carriage
Hydraulic Tailstock w / Built In Center
Foundation Pads
Parts – Operation Manuals

OPTIONAL ACCESSORIES AVAILABLE: P.O.R.

36” – 3 Jaw “Hydraulic” Chuck
36” – 3 Jaw “Pneumatic” Power Chuck
25” – 3 Jaw “Manual” Chuck (9.2” Hole  Bison)
25” – 4 Jaw “Manual” Independent Chuck (10.5”Hole Bison)
15.7” Steady Rest  w/ (2) Sets Of Sleeves (Capacity: 1.57” To 9” & 8.7” To 15.7”)
27.6” Steady Rest w/ (2) Sets Of Sleeves (Capacity 13.8” To 20.9” & 20.5” To 28”)
(2) Turret Configuration (H-4 Front) (V-8 Front)
Chip Conveyor (Front)

For (8) Station Vertical Disc Turret (V-8)

Boring Bar Sleeve (3-8”, 1/2”, 5/8”, 3/4”, 1”, 1-1/4”)
Drill Sleeve (MT #3 Or MT #4)
Boring Bar Holder (1-1/2)
Facing Tool Holder

Boring Bar Support (Not Including The Boring Bars (H-4)

Boring Tool Holders (2-23/64” – 2-31/64”)
Boring Tool Holders (2-3/4” – 3-5/32”)

COMMENTS:

“USA” IMPORTER – DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL:  IMCO at 614-914-5087

F.O.B.:  Location

TERMS:  Check w/Order

All prices subject to change without notice
