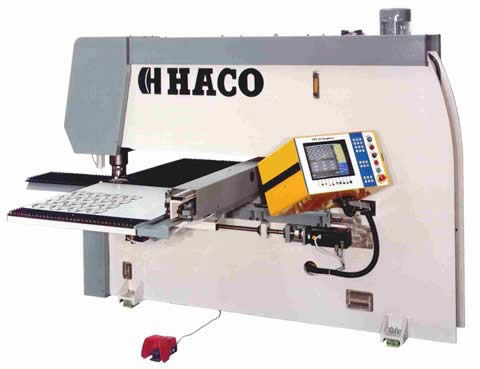

33 TON HACO … CNC TURRET PUNCH

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model: Punchmaster
Type: CNC Turret Punch
Capacity: 33 TON
Year: New

SPECIFICATIONS:

Capacity ………………… 33 Tons
Sheet Size ………………. 50″ x 40″
Number Of Stations ……….. 1
Max. Material Thickness …… 1/4″
Max. Hole Diameter ……….. 2-3/4″
Max. Sheet Weight ………… 180 Lbs
Punch Accuracy …………… +/- 0.008″
Max. Hit Rate ……………. 200/Minute
Linear Positioning Speed ….. 2,560 IPM
Max. Ram Stroke ………….. 1.5″
Standard Control …………. TPC50GR
Smallest Programmable Inc. … 0.0004″
Programming Modes ………… Dialog/Graphical
Electrics ……………….. 12 HP – 220/460V – 3 Phs
Weight ………………….. 11,000 Lbs
Number of Sheet Clamps ……. 2

EQUIPPED WITH:

TPC50GR 3-Axes CNC Control
(2) Repositioning Cylinders
(2) Hydraulic Sheet Clamps
(4) Anti-Vibration Pads
(1) Complete Punch Holder W/ Blank Stripper
(1) Die Holder
Maintenace & Programming Manual

  TPC50GR FEATURES

a) Dialog and Graphical Programming
b) Editing of the NC-Program, Gives a Detailed Expanation of the ISO Codes
c) Automatic Generation and Simulation of the Program
d) Manual (rectangular) Nesting of the Work Pieces on a Sheet
e) Automatic Calculation of the Minimum Sheet Dimensions
f) Standard Entering of DXF Work Pieces (from CAD Systems)
g) Graphical Real-Time Displaying during Punching
h) Simple Editing of NC-programs Generated with External CAD/CAM Systems
i) 1MB Maximum Program Size
j) On-Screen Trouble Shooting (error messages explained)
k) Diagnostics Functions

“USA”  IMPORTER – DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL: IMCO at 614-4644376

F.O.B.: Location

TERMS: Check w/Order

All prices subject to change without notice




SKU: 4292 Category: CNC Turret Punch
