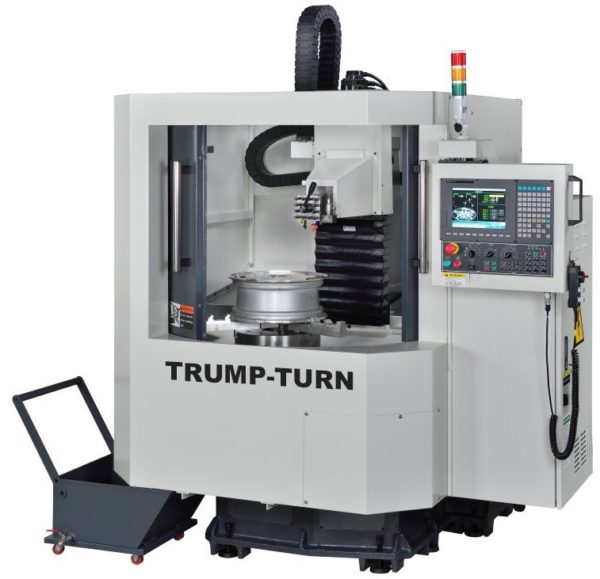

Model: VTL-30 … Centroid T-400i Control
Type: Vertical Turret Lathe
Year: New
SPECIFICATIONS:
Diameter of Table……………. 15″
Maximum Swing……………….. 30”
Gripping O.D. Range………….. 14″ – 30″
Height Under Ram…………….. 18”
Ram Travel (Left To Right)..(X).. 20”
Vertical Travel of Ram……(Z).. 18”
Ram Feed & Rapid Rate (X & Z)…. 393 IPM
Automatic Tool Changer……….. (4) Way Toolpost
Table Weight Capacity………… To Be Advised
Table Speeds………………… 60-1000 RPM
Control Type………………… Syntec
Motor Size………………….. 10 HP – 220V – 3 Phs
Weight……………………… 5000 Lbs
Dimensions (L x W x H):………. 63″ x 76″ x 104″
EQUIPPED WITH:
Syntec 21MA CNC Control
Series Bus Connection – High Speed, High Pressure Machining
Smooth Precision Advanced
Path Smoothing
High Precision Contour Control
Graphic Conversational Input
Digitizing Package w/Software
NOTE: (1) Day Set-Up & Training
Full Enclosure
Automatic Lube System
15” – 3 Step Soft Jaw Chuck (Manual)
Diamond Cutter
Coolant System
Way Covers
(4) Way Toolpost
Chip Cart
Work Light
Tool Box w/Tools
Leveling Bolts
Operations Manaual
MACHINE FEATURES:
“Vertical” Turret Design … “H & G” Ways
Meehanite Integrated Casting
Heavy Duty Roller Type Linear Guideway
“T-Slotted” Rear Cross Slide
“Double Nut” Precision Ballscrews (H & G)
OPTIONAL ACCESSORIES:
Centroid T400i Control
15″ LCD Screen
M4 Stylus Db+2.5mm, L-40mm
M4 Extension 4mm, L=30mm
Back Plate Facing (Enlarge Center Hole Packaging)
Tool Holder (Left or Right)
Diamond Insert
Carbide Insert
Probe
Rotary Phase Converter (220V – 1 Phs
(3) Month Labor Warranty
(1) Year Labor Warranty
