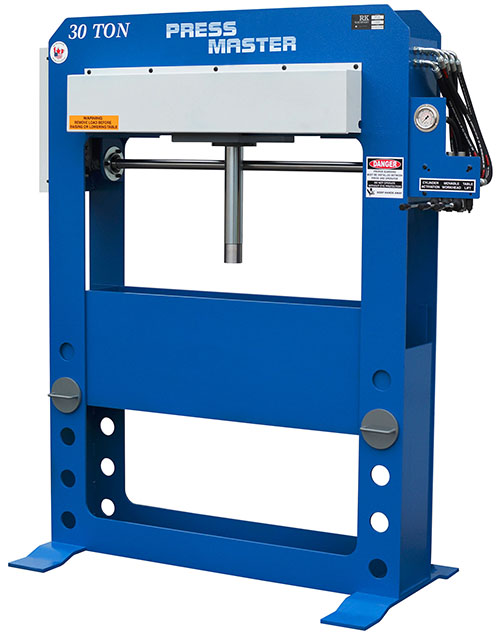

30 TON PRESS MASTER .. H-FRAME PRESS ... ELECTRIC OVER HYDRAULIC
Click to enlarge
HomePresses - New & UsedH Frame Presses 30 TON PRESS MASTER .. H-FRAME PRESS … ELECTRIC OVER HYDRAULIC
Previous product
30 TON PRESS MASTER .. H-FRAME PRESS ... ELECTRIC OVER HYDRAULIC
30 TON PRESS MASTER .. H-FRAME PRESS ... ELECTRIC OVER HYDRAULIC
Back to products
Next product
50 TON PRESS MASTER .. H-FRAME PRESS ... ELECTRIC OVER HYDRAULIC
50 TON PRESS MASTER .. H-FRAME PRESS ... ELECTRIC OVER HYDRAULIC

30 TON PRESS MASTER .. H-FRAME PRESS … ELECTRIC OVER HYDRAULIC

In stock

Request Quote
This product is already in quote request list
Browse the list
  • Description
Description

Model:  HFP-30-MWH
Type:  Electric Over Hydraulic H-Frame
Capacity: 30 TON
Year:  New

SPECIFICATIONS:

Capacity…………….. 30 Ton
Stroke………………. 12″
Bore………………… 5″
Ram Speed Advance…….. 29″ IPM
Ram Speed Return……… 38″ IPM
Dist. Between Posts…… 42″ (R to L)
Dist. Between Posts…… 9″ (F to B)
Maximum Dist. Bed to Ram. 34″
Motor……………….. 5 HP – 230V – 1 Phs
Dimensions…………… 75″(H) x 54″(W) x 30″(D)
Weight………………. 1,600 Lbs

EQUIPPED WITH:

Powered Moveable Workhead
Hydraulic Power Lift Table
Electric/Hydraulic Operation
Heavy Duty Steel Structure
Open Sides to Facilitate Work on Long Pieces
Flat Ram Nose
Cylinder Activation is Fingertip Controlled
Low Speed Pump for Quiet & Dependable Operation
Self Locking Table
(10) Gallon Hydraulic Oil Reservoir
Low Pressure Hydraulic System

OPTIONAL ACCESSORIES: (P.O.R.)

Foot Pedal-Electric Solenoid Valve
Adjustable Stroke Control W/Foot Pedal
V-Blocks
Pressure Regulator – Limits Ram Pressure
Front Safety Guard
18” Stroke Cylinder
24” Stroke Cylinder

COMMENTS:  Mfg. in U.S.A.

“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL:  IMCO at 614-436-4376

F.O.B.:  Location

TERMS:  Check w/Order

All prices subject to change without notice
