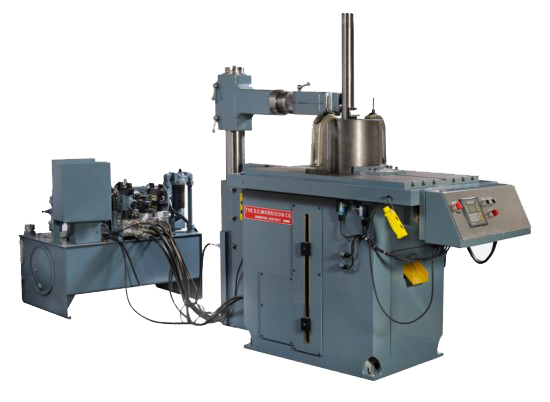

Model: 3″ Hydraulic
Year: New
SPECIFICATIONS:
Cuts Key ways ………………….1/8″ to 3″
Length Of Stroke (Adjustable)…….14″
Type Of Cutter Bar ……………..Single Tooth
Largest Cutter bar ……………..3″
Distance From 2″ Cutter to Column…34-1/2″
Max. Distance Under Clamps ………14″
Distance Between Clamps …………8″
Table Size …………………….36-1/2″ x 50″
Table Height from Floor …………41-1/2″
Number of Feeds (6) …………….0.001″ thru 0.006″
Motor …………………………20 HP – 220/440V – 3 Phs
Machine Weight …………………6000 Lbs
Floor Space Hydraulic System …….41″ x 43″
Floor Space Keyseater …………..36″ x 84″
EQUIPPED WITH:
Push Button Station
Hydraulic Overhead Support
User Friendly
Center Vee
Automatic Lube
Automatic Table Feed
Automatic Stop
Quick Set-Up
Single Tooth Cutters
Adjustable Stroke
Automatic Centering
Uses “No” Bushings
Hydraulic System
2” Cutter Bar
Magnetic Starter w/Heaters
OPTIONAL ACCESSORIES:
1″ High Speed Inserted Cutters
1-1/4″ High Speed Inserted
1-1/2″ High Speed Inserted
1-3/4″ High Speed Inserted
2″ High Speed Inserted
2-1/4″ High Speed Inserted Cutters
2-1/2″ High Speed Inserted
2-3/4″ High Speed Inserted
3″ High Speed Inserted
Cutter Bar Adaptor (for Smaller Cutters than Listed Above)
COMMENTS: Mfg. In U.S.A.
