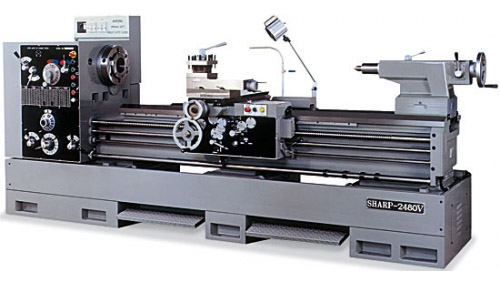

Model: 2480-V
Type: Geared Head
Year: New
SPECIFICATIONS:
Headstock……………. Geared Head
Swing Over Bed……….. 24”
Swing Over Cross Slide… 14-3/4”
Swing in Gap…………. 33”
Dist Between Centers….. 80”
Spindle Nose…………. D1-11
Spindle Hole…………. 4-1/8”
Bed Width……………. 19”
Spindle Speeds(18)……. 10 – 1200 RPM
Threading……………. Inch/Metric
Motor Size…………… 15 HP – 220/440V – 3 Phs
Tailstock Taper………. #5 MT
Gross Weight…………. 8000 Lbs
Dimensions…………… To be Advised
EQUIPPED WITH:
(2) Speed Tailstock on Quill
Longitudinal Carriage Stop
Coolant System
(8-3/4″ – 13″) Steady Rest
20″ Face Plate
(4) Way Rapid Carriage
Halogen Work Light
Tool Kit & Manuals
MACHINE FEATURES:
4-1/8″ Spindle Hole
Clutch Type Gear Head
H & G Headstock Gears
Wide Thread Range
(1) Piece Cast Meehanite Bed
OPTIONAL ACCESSORIES:
12″ – 3 Jaw Bison Chuck (4.05” Bore)
16″ – 3 Jaw Bison Chuck (5.34” Bore)
20″ – 3 Jaw Bison Chuck (7.46” Bore)
16″ – 4 Jaw Bison Chuck
20″ – 4 Jaw Bison Chuck
Follow Rest
Taper Attachment – Installed
Roller Jaws for Steady Rest
(11″ – 17″) Steady Rest
#5 MT Live Center
“Aloris Type” Q.C. Tool Post w/(7) Holders
Micro Meter Carriage Stop
Upgrade to 20 HP Motor
Rear Splash Guard
Newall Digital Readout (Installed)
