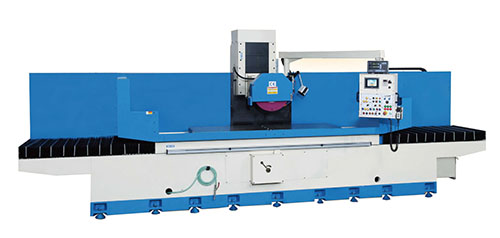

Model: GT-2448-3A
Type: (3) Axis Automatic
Year: New
SPECIFICATIONS:
Table Size………………… 24” x 60”
Longitudinal Travel…….(X).. 65”
Cross Travel…………..(Y).. 26”
Vertical Travel………..(Z).. 31.5”
Center Line Spindle To Table… 31.5”
Wheel Size………………… 20” x 2” x 5”
Motor Size Voltage…………. 15 HP – 220/440V – 3 Phs
Axis……………………… (3) Axis Automatic
Table Weight Capacity………. 2640 Lbs
Weight……………………. 15,000 Lbs
EQUIPPED WITH:
24” x 48” Electro Magnetic Chuck w/Control
20” x 2” x 5” Grinding Wheel
Chuck Control w/Variable Holding Power
Coolant System w/Paper Filter & Magnetic Separator
Electrical Parallel Dresser
Hydraulic Chiller System
Balancing Arbor
Wheel Flange
Tool Box & Tools
MACHINE FEATURES
(3) Axis Hydraulic Automatic
Crisscross Grinding Function
Wheelhead Rapid Up & Down
MPG w/PLC Touch Screen Control
Electronic Crossfeed Travel Setting
Double-V Ways On Longitudinal & Cross
Ballscrew & A.C. Servo Motor On Downfeed
Ballscrew On Crossfeed
OPTIONAL ACCESSORIES:
Variable Speeds For Wheelhead
Spare Wheel Flange
Automatic Dresser w/Automatic Compensation
Spindle Motor Upgrade 15 HP To 25 HP
24” x 2” x 5” Grinding Wheel w/Inverter
20” x 3” x 5” Grinding Wheel Upgrade
Machine Light
39” Spindle Center Height From Table
COMMENTS:
