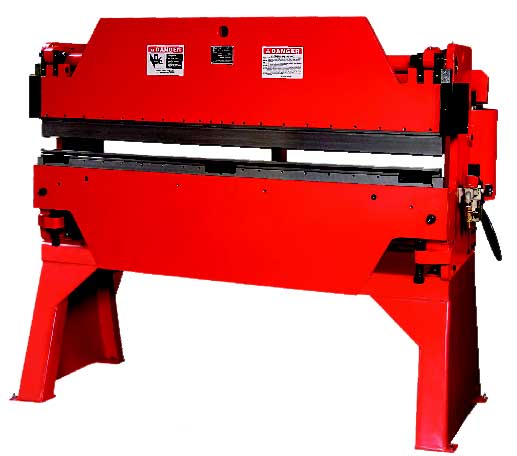

Model: B-424
Type: Pnuematic
Year: New
SPECIFICATIONS:
Tonnage………………. 24 Ton
Bending Length………… 48”
Dist Between Housings….. 48”
Throat Depth………….. 7.5”
Stroke Length…………. 3″
Ram Adjustment………… 0 – 2”
Fast Approach Speed……. N/A
Fast Return Speed……… N/A
Press Speed…………… Variable
Motor Size……………. Air
Weight……………….. 2880 Lbs
CAPACITY: 4′ x 13 ga
EQUIPPED WITH:
90 Degree Top Die
(4) Way Bottom Die (3/8”, 1/2”, 5/8” & 3/4”)
Lower Die Holder
Manual Backgauge
Foot Pedal
Air Line Filter
Regulator
Lubrication Unit
MACHINE FEATURES:
Rugged Design for Years of Service
Reliable Pneumatic Operation
No Motor, Clutch or Brake to Maintain
Adjustable Stroke Depth Control
Adjustable Die Space
Infinitely Variable Ram Speed Control
Variable Tonnage Control
OPTIONAL ACCESSORIES AVAILABLE:
Floor Stand
SPECIAL ORDER
13″ Shut Height
17.5″ Shut Height
4′ Front Support Table
Micrometer Backgauge
4’ Table w/Push Button Control
COMMENTS: Mfg. In USA
DISTRIBUTION & PARTS CENTER
Need A Part ?
Have A Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check with Order
All prices subject change without notice
