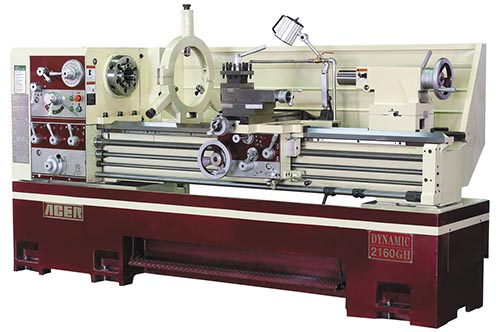

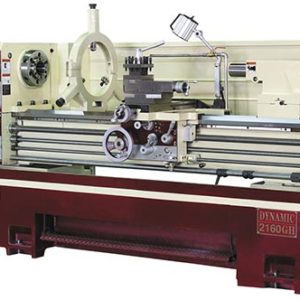

Model: “GH”
Type: Geared Head
Year: New
SPECIFICATIONS:
Headstock……………. Geared Head
Swing Over Bed……….. 21”
Swing Over Cross Slide… 13”
Swing in Gap…………. 27-1/8””
Dist Between Centers….. 80”
Spindle Nose…………. D1-8
Spindle Hole…………. 3-1/4”
Bed Width……………. 13.8”
Spindle Speeds(18)……. 25 – 1540 RPM
Threading……………. Inch – Metric
Motor Size…………… 10 HP – 220/440V – 3 Phs
Tailstock Taper………. #5 MT
Weight………………. 5940 Lbs
Dimensions…………… 130″(l) x 48″(w) x 67″(h)
EQUIPPED WITH:
12” – 3 Jaw Chuck
12” – 4 Jaw Chuck
(4) Way Tool Post
Coolant System
Full Length Splash Guard
Longitudinal Carriage Stop
17” Face Plate
(3.4” – 11.2”) Steady Rest
Halogen Work Light
Tool Box w/Tools
MACHINE FEATURES:
3-1/4″ Spindle Hole
Hardened & Ground Headstock Gears & Bed Ways
Main Spindle Equipped w/(3) Precision Bearings
Tailstock Barrel (Inch – Metric)
Foot Brake
Forward – Reverse Lever
Longitudinal – Automatic – Multiple Feed Stop
OPTIONAL ACCESSORIES:
12” – 3 Jaw “Independent” Chuck (D1-8)
16” – 4 Jaw “Independent” Chuck (D1-8)
(1.18” – 6.69”) Follow Rest
20” Face Plate
(4) Position Carriage Stop
Aloris Tool Post w/(6) Holders
Dorian “Quick Change” Tool Post w/(4) Holders
Taper Turning Attachment
Micrometer Stop
Newall Digital Readout
