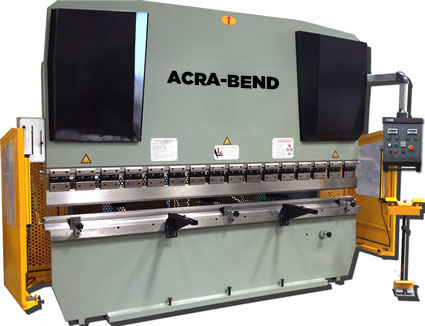

200 TON x 10' ACRA-BEND ... PRESS BRAKE
Click to enlarge
HomeBrakes - New and UsedPress Brakes - New & Used 200 TON x 10′ ACRA-BEND … PRESS BRAKE
Previous product
155 TON x 13' ACRA-BEND ... PRESS BRAKE
155 TON x 13' ACRA-BEND ... PRESS BRAKE
Back to products
Next product
200 TON x 13' ACRA-BEND ... PRESS BRAKE
200 TON x 13' ACRA-BEND ... PRESS BRAKE

200 TON x 10′ ACRA-BEND … PRESS BRAKE

In stock

Request Quote
This product is already in quote request list
Browse the list
  • Description
Description

Model: 10/200
Type:  Hydraulic
Year: New

SPECIFICATIONS:
Tonnage…………….. 200 Ton
Bed Length………….. 125.9”
Dist Between Housings… 102.3”
Throat Depth………… 12.5”
Stroke Length……….. 2.75”
Ram Adjustment………. 7”
Fast Approach Speed….. 2.4” / Sec
Fast Return Speed……. 2.0” / Sec
Motor Size………….. 20 HP – 220/440V – 3 Phs
Weight……………… 25,360 Lbs
Dimensions (LxWxH)…… 148″ x 64″ x 101″

CAPACITY (Mild Steel):

13′ x 1/4″
10′ x 5/16″
8′ x 3/8″
6′ x 1/2

EQUIPPED WITH:

Power Backgauge w/Digital Readout
Power Ram Adjustment w/Digital Readout
Manual Bed Crowning
Foot Pedal
(8) Way Bottom Die
(1) Gooseneck Top Punch
“Sick” Light Curtain

MACHINE FEATURES

Hydraulic Cylinders
Ram Depth Stops – Located In Hydraulic Cylinders (Motorized/Mechanical)
24” Front Operated Power Backgauge
(3) Speed Ram – Approach, Forming & Return
Note:  Speed Change “Points” Are Set Manually
Down Acting Ram Guided By “Anti-Friction” Ways
Torsion Bar Provides Ram Cylinder Parallelism
Floor Mount
Dwell Timer at Bottom of Ram

OPTIONAL ACCESSORIES:

Pilz Laser Guard
(3) Axis “R” CNC Control of Backgauge Finger Height
“High Speed” Servo Backgauge
Installation & Training:

COMMENTS:

IMPORTER – DISTRIBUTION & PARTS CENTER

Need A Part ?
Have A Technical Question ?

CALL:  IMCO at 614-914-5087

F.O.B.:  Location

TERMS:  Check w/Order

All  prices subject to change without notice

SKU: 13818 Category: Press Brakes - New & Used
