20" x 80" CUTMASTER ... LATHE 4-1/8" SPINDLE HOLE
Click to enlarge
HomeLathes New and UsedLathes - Conventional 20″ x 80″ CUTMASTER … LATHE 4-1/8″ SPINDLE HOLE
Previous product
60 TON KINGSLAND ... SINGLE END PUNCH
60 TON KINGSLAND ... SINGLE END PUNCH
Back to products
Next product
20" x 60" CUTMASTER ... LATHE 4-1/8" SPINDLE HOLE
20" x 60" CUTMASTER ... LATHE 4-1/8" SPINDLE HOLE

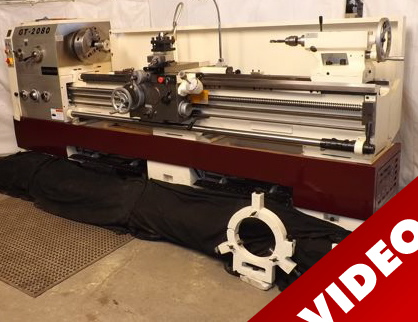

20″ x 80″ CUTMASTER … LATHE 4-1/8″ SPINDLE HOLE

In stock

Request Quote
This product is already in quote request list
Browse the list
  • Description
Description

Model: GT
Type: Engine Lathe
Year: New

SPECIFICATIONS:

Headstock……………. Geared Head
Swing Over Bed……….. 20”
Swing Over Cross Slide… 12”
Swing in Gap…………. 28”
Dist Between Centers….. 80”
Spindle Nose…………. D1-8
Spindle Hole…………. 4-1/8”
Bed Width……………. 15-1/2”
Spindle Speeds(12)……. 36 – 1600 RPM
Threading……………. Inch / Metric
Motor Size…………… 10 HP – 220/440V – 3 Phs
Tailstock Taper………. #5 MT
Weight………………. 8650 Lbs
Dimensions…………… To be Advised

EQUIPPED WITH:

12″ – 3 Jaw Chuck w/Top Reversible Jaws
13″ – 4 Jaw Chuck w/Top Reversible Jaws
25” Face Plate
(4-3/4” – 10-1/4”)” Steady Rest w/Roller Jaws
(1” – 3 “) Follow Rest
(4) Way Tool Post
25” Face Plate
Taper Attachment … (Installed).
Automatic Kick Out
Oil Pump
Foot Brake
Halogen Work Light
Coolant System
Full Length Splash Guard
Thread Chasing Dial
Tool Box w/Tools

OPTIONAL ACCESSORIES AVAILABLE: P.O.R.

12” – 3 Jaw “Set Tru” Chuck
12” – 6 Jaw “Set Tru” Chuck
16” – 4 Jaw (Steel) Chuck
“Hand Lever” 5C Collet Closure
10” Steady Rest (Roller Jaws)
Aloris Q. C. Tool Post w/5 Holders
Newall Dro … (Installed)

COMMENTS:

“USA”  IMPORTER – DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL:  IMCO at 614-914-5087

F.O.B.: Location

TERMS:  Check w/Order

All prices subject to change without notice













SKU: 10878 Category: Lathes - Conventional
