17" x 60" VICTOR ... LATHE 3.07" SPINDLE HOLE
Click to enlarge
HomeLathes New and UsedLathes - Conventional 17″ x 60″ VICTOR … LATHE 3.07″ SPINDLE HOLE
Previous product
20" x 80" VICTOR ... LATHE 3-1/8" SPINDLE HOLE
20" x 80" VICTOR ... LATHE 3-1/8" SPINDLE HOLE
Back to products
Next product
17" x 90" VICTOR ... LATHE 3.07" SPINDLE HOLE
17" x 90" VICTOR ... LATHE 3.07" SPINDLE HOLE

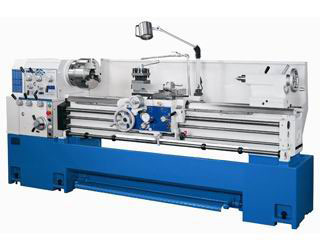

17″ x 60″ VICTOR … LATHE 3.07″ SPINDLE HOLE

In stock

Request Quote
This product is already in quote request list
Browse the list
  • Description
Description

Model:  S-1700-E
Type: Geared Head
Year:  New

SPECIFICATIONS:

Headstock……………. Geared Head
Swing Over Bed……….. 16.93”
Swing Over Cross Slide… 9.45”
Swing In Gap…………. 25.59”
Dist. Between Centers…. 60”
Spindle Nose…………. D1-8
Spindle Hole…………. 3.07”
Bed Width……………. 11.81”
Spindle Speeds(12)……. 40 – 2000 RPM
Threading……………. Inch / Metric
Motor Size…………… 7.5 HP – 220/440V – 3 Phs
Tailstock Taper………. # 4 MT
Weight………………. 4850 Lbs
Dimensions…………… 110″(l) x 38″(w) x 64″(h)

EQUIPPED WITH:

10” – 3 Jaw Chuck
Chuck Cover w/Limit Switch
(4) Way Tool Post
(6) Steady Rest
Follow Rest
Foot Brake
Coolant System
Full Length Splash Guard
Thread Dial
Inch/Metric Gears
H & G Head Stock Gears & Bed Ways

OPTIONAL ACCESSORIES: P.O.R.

10″ – 3 Jaw Chuck
10″ – 3 Jaw “Zero Set” Chuck w/D1-8 Back Plate
12″ – 3 Jaw Chuck
12″ – 4 Jaw Chuck
14 Face Plate
9 Steady Rest
Drive Plate
Micro Carriage Stop
(4) Position Carriage Stop
Taper Turning Attachment
#4 MT Live Center
5C Lever Type Collet Closer
Quick Change Tool Post w/(5) Holders
Newall DRO – Installed

COMMENTS:

 “USA” Importer – Distribution & Parts Center

Need a Part ?
Have a Technical Question ?

CALL: IMCO at 614-914-5087

F.O.B.: Location

TERMS: Check w/Order

All prices subject to change without notice

SKU: 12830 Category: Lathes - Conventional
