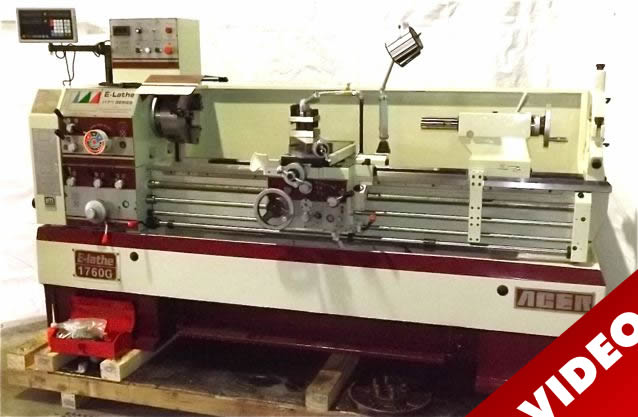

Model: “G”
Type: Geared Head
Year: New
SPECIFICATIONS:
Headstock……………. Geared Head
Swing Over Bed……….. 17″
Swing Over Cross Slide… 9-5/8″
Swing in Gap…………. 26″
Dist Between Centers….. 60″
Spindle Nose…………. D1-6
Spindle Hole…………. 2-1/4″
Bed Width……………. 12″
Spindle Speeds(VS)……. 42 – 2000 RPM
Threading……………. Inch/Metric
Motor Size…………… 7.5 HP – 220V – 3 Phs or 1 Phs
Tailstock Taper………. #4 MT
Weight………………. 4260 Lbs
Dimensions…………… 107″(l) x 41″(w) x 67″(h)
EQUIPPED WITH:
10” – 3 Jaw Chuck
9″ – 3 Jaw Adapter Plate
12″ – 4 Jaw Adapter Plate
Chuck Guard w/Emergency Stop
(4) Way Toolpost
Coolant System
Full Length Splash Guard
14” Face Plate
(0.6″ – 7”) Steady Rest
Halogen Work Light
Tool Box w/Tools
MACHINE FEATURES
2-1/4 Spindle Hole
Hardened & Ground Headstock Gears & Bed Ways
10 HP Frequency Drive
Main Spindle Equipped With (3) Precision Bearings
Tailstock Barrel (Inch – Metric)
Foot Brake
Forward – Reverse Lever
Longitudinal – Automatic – Multiple Feed Stop
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
