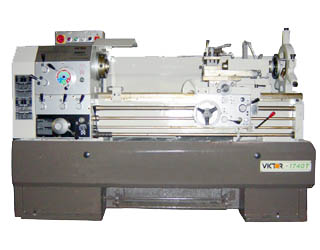

Model: 1700-E … Geared Head
Type: Geared Head
Year: New
SPECIFICATIONS:
Headstock…………….. Geared Head
Swing Over Bed:……….. 17”
Swing Over Cross Slide:… 9-5/8”
Swing In Gap:…………. 26”
Dist. Between Centers:…. 40”
Spindle Nose:…………. D1-6
Spindle Hole:…………. 2-1/4”
Bed Width:……………. 11-3/4”
Spindle Speeds:(12)……. 20-2000 RPM
Threading:……………. Inch / Metric
Motor Size:…………… 7.5 HP – 220/440V – 3 Phs
Tailstock Taper:………. # 4 MT
Weight:………………. 3520 Lbs
Dimensions……………. 90″(l) x 38″(w) x 64″(h)
EQUIPPED WITH:
8” – 3 Jaw Chuck
(4) Way Tool Post
Rapid Traverse
Face Plate
(6″)Steady Rest
Follow Rest
Foot Brake
Coolant System
Full Length Splash Guard
Thread Dial
H & G Metric Gears
H & G Head Stock Gears
H & G Bed Ways
MACHINE FEATURES
– 2-1/4″ Spindle Hole
– H & G Gears & Bedways
– Gap Bed
– Foot Pedal Brake
– Low Voltage Controls for Safe Operation
– Automatic Forced Lubrication to Headstock
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
8”-3 Jaw “Zero Set” Chuck w/Back Plate
10”-3 Jaw Chuck
10”-3 Jaw “Zero Set” Chuck w/Back Plate
12”-3 Jaw Chuck
10”-4 Jaw Chuck
12”-4 Jaw Chuck w/Drive Plate
Taper Turning Attachment
#4 MT Live Center
5C Lever Type Collet Closer
Quick Change Tool Post w/(5) Holders
(15) PCS. 5C Collet Set
Micro Carriage Stop
(2) Axis Newall DRO … (Installed)
