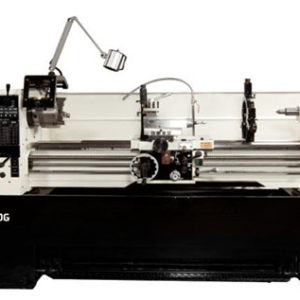

Model: RKL-1740GH
Type: Geared Head
Year: New
SPECIFICATIONS:
Headstock…………….. Geared Head
Swing Over Bed………… 17”
Swing Over Cross Slide…. 10.9”
Swing in Gap………….. 24.5”
Dist. Between Centers….. 40”
Spindle Nose………….. D1-6
Spindle Hole………….. 3.149”
Bed Width…………….. 12”
Spindle Speeds(12)…….. 36-1800 RPM
Threading…………….. Inch/Metric
Motor Size……………. 7.5 HP – 480V – 3 Phs
Tailstock Taper……….. #4 MT
Weight……………….. 4400 Lbs
Dimensions……………. 95″(l) x 46″(w) x 75″(h)
EQUIPPED WITH:
(4) Way Toolpost
6″ Steady Rest w/Roller Jaws
3.5” Follow Rest w/Bronze Jaws
12″ Face Plate
Telescopic Taper Attachment
Splash Guard (Full Length)
Chuck Guard
Coolant System
Chip Pan
Brake Pedal
Halogen Work Light
Leveling Pads
Tool Box w/Tools
Operation & Parts Manual
MACHINE FEATURES
3.149″ Spindle Hole
H & G Gears & Bed Ways
Gap Bed
Spindle Supported by (3) Tapered Roller Bearings
Meehanite Casting Bed
Precision Ground Bed
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
10″ – 3 Jaw Bison Chuck
12″ – 3 Jaw Bison Chuck
12″ – 4 Jaw “Steel” Bison Chuck
Micro Carriage Stop
Lever Collet Attachment – Installed
5C Collet Set (1/8″ – 1-1/8″ x 1/16″)
“Aloris Type” Quick Change Toolpost w/(5) Holders
18N Jacobs “Ball Bearing” Chuck w/Arbor (1/8″ – 3/4″ Capacity)
#4 MT Live Center
Newall Digital Readout
“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
