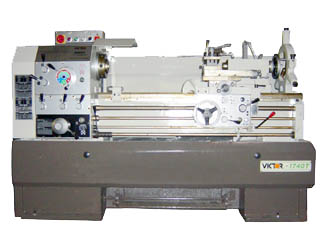

Model: 1600 S
Type: Geared Head
Year: New
SPECIFICATIONS:
Headstock……………. Geared Head
Swing Over Bed……….. 16”
Swing Over Cross Slide… 9-7/16”
Swing In Gap…………. 23-7/16”
Dist Between Centers….. 60”
Spindle Nose…………. D1-6
Spindle Hole…………. 2-1/32”
Bed Width……………. 11-3/4”
Spindle Speeds (12)…… 30 – 2000 RPM
Threading……………. Inch/Metric
Motor Size…………… 7-1/2 HP – 220/440V – 3 Phs
Tailstock Taper………. #4 MT
Gross Weight…………. 4950 Lbs
Dimensions…………… 110″(l) x 38″(w) x 65″(h)
EQUIPPED WITH:
8″ – 3 Jaw Chuck
Coolant System
Splash Guard
Chip Tray
Follow Rest
Thread Dial
Steady Rest
14″ Face Plate
Halogen Work Light
(4) Way Tool Post
MACHINE FEATURES
2-1/32″ Spindle Hole
Gap Bed Design
H & G Headstock Gears & Bedways
Main Spindle Equipped w/(3) Precision-Bearings
Inch Metric Gear Box
Heavy Duty Construction
Pressurized Lubrication to Headstock
Foot Pedal Brake
OPTIONAL ACCESSORIES:
8 – 3 Jaw Zero Set Chuck W / Back Plate
10 – 3 Jaw Chuck
10 – 3 Jaw Zero Set Chuck W / Back
12 – 3 Jaw Chuck
10 – 4 Jaw Chuck
12 – 4 Jaw Chuck
Chuck Cover
Taper Turning Attachment
#4 Mt Live Center
5C Lever Type Collet Closer
(15) Pc 5C Collet Set
Micro Carriage Stop
(4) Position Carriage Stop
Quick Change Toolpost W/(5) Holders
60 Newall Dro – Installed
COMMENTS: Mfg. In Europe
“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a part ?
Have a technical question ?
CALL: IMCO at 614-914-5087
F.O.B. Location
TERMS: Check w/Order
All prices subject to change without notice
