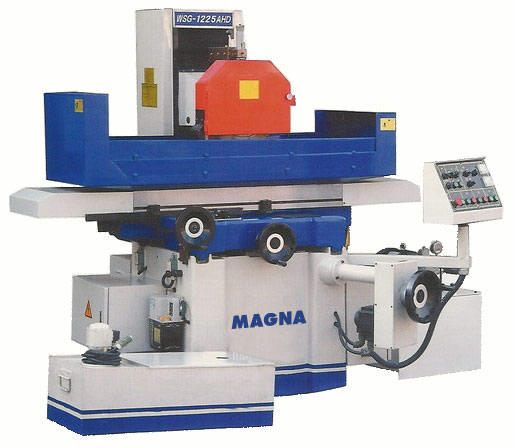

Model: WSG
Type: (3) Axis Automatic
Year: New
SPECIFICATIONS:
Table Size………………… 16” x 32”
Longitudinal Travel…….(X).. 36”
Cross Travel…………..(Y).. 17.72”
Vertical Travel………..(Z).. —
Center Line Spindle To Table… 23″
Wheel Size………………… 14” x 1.6” x 5”
Motor Size Voltage…………. 7.5 HP – 220/440V – 3 Phs
Axis……………………… (3) Axis Automatic
Table Weight Capacity………. 1100 Lbs
Weight……………………. 8380 Lbs
Dimensions………………… To Be Advised
EQUIPPED WITH:
(3) Axis Automatic
Automatic Incremental Down Feed
16” x 32” Electro Magnetic Chuck, Control & Demagnetizer
Coolant System & Magnetic Separator
Overhead Parallel Wheel Dresser
Grinding Wheel
Wheel Flange
Full Length Splash Guard
Vertical Elevation Handle On Base
Wheel Balancing Stand & Arbor
Leveling Pads
Tool Box
Work Light
Machine Features
Cross Feed “Ball Screw” Powered by AC Motor
Vertical Feed Powered by Servo Motor
Heavy Duty Spindle – (4) Piece “Pre-Loaded” Precision Angular Contact For Accuracy
Slideways – Turcite Coated For Accuracy
Auto Lubrication
Cast Iron Table, Saddle & Base
Hydraulic Table w/Rack & Pinion For Hand Operation
Table Speed Control – Presetable “Hydraulic”
OPTIONAL ACCESSORIES: P.O.R.
Extra Wheel Flange
(2) Axis Digital Readout – Installed
COMMENTS:
U.S.A. DISTRIBUTION – PARTS & SERVICE CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
