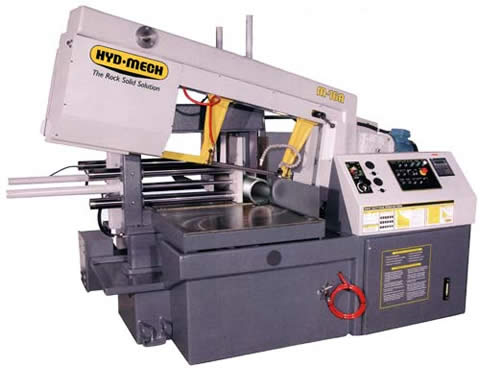

Model: M-16-A
Year: NEW
Type: Automatic
SPECIFICATIONS:
Round at 90 Degrees……… 16”
Round at 30 Degrees……… 11”
Round at 45 Degrees……… 16”
Rec. Or Sq. At 90 Degrees… 16”x25”
Rec. At 30 Degrees………. 9”x16”
Rec. At 45 Degrees………. 15” x 16”
Work Height…………….. 32”
Blade Size……………… 1-1/4” x .042 x 18’6”
Blade Speed (V.S.)………. 50-350 FPM
Motor Size……………… 7.5 HP – 220/440V – 3 Phs
Weight…………………. 7400 Lbs
EQUIPPED WITH:
Mitsubishi Plc 500 Control
(99) Jobs In Memory Storage w/(5) Jobs In Queue
Cutting Length
Quantity Of Pieces
Blade Breakage Switch
30 Degree Mitering Capabilities
Powered Blade Brush
Hydraulic Powered Guide Arm Positioning
Hydraulic Positive Down Feed
Hydraulic Chip Conveyor
Work Light
(2) Hydraulic Full Stroking Vises
(1) w/ (0-33”) Shuttle Stroke
OPTIONAL ACCESSORIES:
Chip Bucket
Full Capacity Overhead Bundle (2) Vises
Out Of Stock Switch
Variable Vise Pressure – (2) Vises
Mist Lubrication System
Blade Deviation Monitor
Idler Conveyor (5’ Section)
Idler Conveyor (10’ Section)
COMMENTS: Mfg. In U.S.A.
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need A Part ?
Have A Technical Question ?
CALL: IMCO At 614-914-5087
F.O.B.: Columbus, Ohio
TERMS: Check w/Order
All prices subject to change without notice
