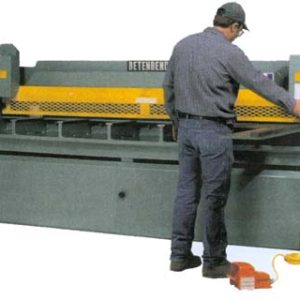

Model: 52
Type: Foot/Manual
Year: New
SPECIFICATIONS:
Length of Cut………… 52-1/4”
Max. Thickness of Cut…. 16 ga
Back Gauge Range……… 30″
Front Gauge Range…….. 37″
Weight………………. 950 Lbs
Dimensions (LxWxH)……. 81″ x 69″ x 56″
CAPACITIES:
Mild Steel ……… 16 ga
Stainless ………. 20 ga
Aluminum ……… 12 ga
EQUIPPED WITH:
Foot Pedal
Hi Chrome … Hi Carbon … (4) Edge Blades
Spring Activated Holddown
Double Locking Back Gauge w/ Scales and Vernier Wheels
Dual Inlaid Bed Scales – Inch/Metric
Bed Adjusting Lower Blade
Upper Blade Adjusted by Truss on Cutter Head
Frame, Bed & Head Constructed of Heavy Duty Cast Iron
MACHINE FEATURES:
Dual Inlaid Bed Scales – Inch/Metric
Bed Adjusting Lower Blade
Upper Blade Adjusted by Truss on Cutter Head
Frame, Bed & Head Constructed of Heavy Duty Cast Iron
OPTIONAL ACCESSORIES (P.O.R.):
4′ Squaring Arm
Hi-Carbon … Hi-Chrome Blades
COMMENTS: Mfg. in The U.S.A.
