16 GA x 3' TENNSMITH ... SHEET METAL SHEAR
Click to enlarge
Home Shears - New & Used Sheet Metal Shears 16 GA x 3′ TENNSMITH … SHEET METAL SHEAR
20 GA x 10' TENNSMITH ... SHEET METAL SHEAR
20 GA x 10' TENNSMITH ... SHEET METAL SHEAR
Back to products
16 GA x 4' TENNSMITH ... SHEET METAL SHEAR
16 GA x 4' TENNSMITH ... SHEET METAL SHEAR

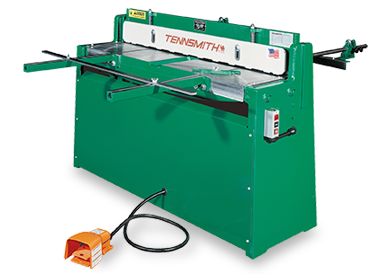

16 GA x 3′ TENNSMITH … SHEET METAL SHEAR

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model: 36-A
Type:  Air
Year: New

SPECIFICATIONS:

Length of Cut………… 37”
Max. Thickness of Cut…. 16 ga
Strokes per Minute……. 40 SPM
Maximum PSI………….. 75 PSI
Back Gauge Range……… 30″
Front Gauge Range…….. 37″
Weight………………. 800 Lbs
Dimensions (LxWxH)……. 46.5″ x 24″ x 42″



CAPACITIES:
Mild Steel ………….. 16 ga
Stainless …………… 20 ga
Aluminum ………….. 12 ga

EQUIPPED WITH:

Foot Operated Air Valve Control
Pressure Regulator
Air Gaige
Oiler/Condenser Cups & Neoprene
Hi Chrome … Hi Carbon … (4) Edge Blades
Padded Holddown
Double Locking Back Gauge w/ Scales and Vernier Wheels
Frame, Bed & Head Constructed of Heavy Duty Cast Iron

OPTIONAL ACCESSORIES (P.O.R.):

4′ Squaring Arm
Hi-Carbon … Hi-Chrome Blades

COMMENTS:  Mfg. in The  U.S.A.

“USA”  IMPORTER  – DISTRIBUTION & PARTS CENTER

Need A Part?
Have A Technical Question?

CALL:  IMCO at 614 464-4376

F.O.B.:  Location

TERMS:  Check w/Order

All Prices subject to change without notice

SKU: 10053 Category: Sheet Metal Shears

Related products

16 GA x 4' TENNSMITH ... SHEET METAL SHEAR
Compare

16 GA x 4′ TENNSMITH … SHEET METAL SHEAR

Model:  52-H Type: Hydraulic/Squaring Year:  New SPECIFICATIONS: Length of Cut………… 52-1/4” Max. Thickness of Cut…. 16 Ga Strokes per Minute…….
Add to wishlist
16 GA. x 4' MAGNA ... HEAVY DUTY SHEET METAL SHEAR
Compare

16 GA. x 4′ MAGNA … HEAVY DUTY SHEET METAL SHEAR

Model: 5216 Type: Foot Year: New SPECIFICATIONS: Length of Cut:……….. 52” Max. Thickness of Cut:… .062” (16 GA) Weight:……………… 1,230
Add to wishlist

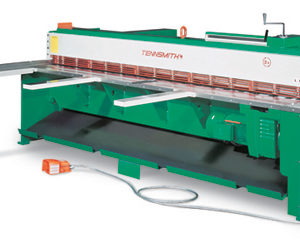

14 GA x 10' TENNSMITH ... SHEET METAL SHEAR
Compare

14 GA x 10′ TENNSMITH … SHEET METAL SHEAR

Model: LM-1014-F Type: Electro-Mechanical Year: New SPECIFICATIONS: Length of Cut……… 121” Max. Cut………….. 14 ga Strokes Per Min……. 35 SPM Motor Size………… 5
Add to wishlist
14 GA x 12' TENNSMITH ... SHEET METAL SHEAR
Compare

14 GA x 12′ TENNSMITH … SHEET METAL SHEAR

Model: LM-1214-F Type: Electro-Mechanical Year: New SPECIFICATIONS: Length of Cut……… 145” Max. Cut………….. 14 ga Strokes Per Min……. 35 SPM Motor Size………… 7.5
Add to wishlist

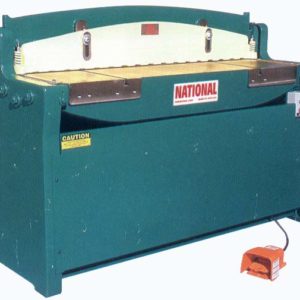

12 GA x 4' NATIONAL ... PNUEMATIC SHEET METAL SHEAR
