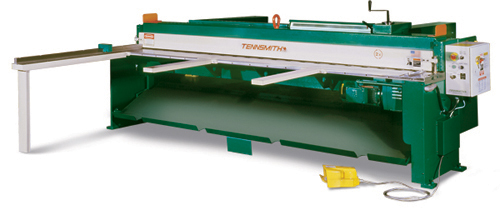

Model: MSE-1016-FC
Type: Electro-Mechanical
Year: New
SPECIFICATIONS:
Length of Cut……… 121”
Max. Cut………….. 16 ga (.059″)
Strokes Per Min……. 40 SPM
Motor Size………… 3 HP – 220/440V – 3 Phs
Weight……………. 4350 Lbs
Dimensions (LxWxH)…. 140″ x 69″ x 50″
CAPACITIES:
Mild Steel ……. 16 ga
Stainless …….. 20 ga
Aluminum ……. 14 ga
EQUIPPED WITH:
Performance Package Consisting of:
5’ Squaring Arm w/Adjustable Stop
(2) Front Support Arms
Air Operated Sheet Support System (F = Front)
FC = Front Material Cart
Stroke Counter
Single, Continuous, & Jog Stroke Cycles
Full Length Self Leveling Hold Down Bar
Adjustable Guide Blocks
Remote Foot Pedal Control
Hi Chrome…Hi Carbon…(4) Edge Blades
MACHINE FEATURES:
Precision – Machined Table
Dual Inlaid Bed Scales – Inch/Metric
Non – Metallic Gibs
30″ “2x-F” Front Operated Manual Backgauge w/Pointer & Scale (Allows Full Backgauge Travel w/(2) Full Revolutions of the Handle)
OPTIONAL ACCESSORIES (P.O.R.):
5’ Squaring Arm w/Scales
10’ Squaring Arm w/Scales
Digital Backgauge Readout
Additional Flip-Stops for Squaring Arm (each)
Stroke Counter (Electro-Mechanical)
Protractor Attachment
Single Phase
Hi-Carbon Hi-Chrome (4) Edge Blade (per Set
COMMENTS: Mfg. In U.S.A.
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need A Part ?
Have A Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
