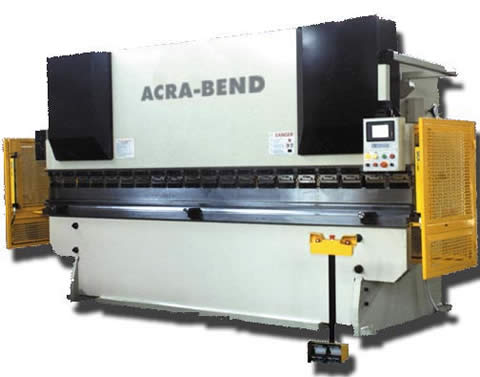

Model: 8’x155T
Year: New
Type: CNC
SPECIFICATIONS:
Tonnage:……………… 155
Bending length:……….. 98.4”
Dist. Between Housings:… 80.7”
Throat Depth:…………. 12.5”
Stroke Length:………… 2.36”
Ram Adjustment:……….. 5.9″
Motor Size:…………… 10 HP – 220/440V – 3 PHS
Capacities:
MILD STEEL:
5/16″ ………….. 8′
STAINLESS:
1/8″ …………… 8′
ALUMINUM:
5/8″ …………… 8′
Weight:………………. 17,640 LBS
EQUIPPED WITH:
(2) Axis “CNC” Control With Graphics (Ram Depth, Back Gauge Position)
A) “X” Axis… 24” Programmable Back Gauge
B) “Y” Axis… Programmable Ram Cylinder Depth
C) Tool Library
D) (100) Program Storage
E) (20) Bends per Program
“SICK” Light Curtain System
Manually Adjustable (3) Speed Ram
Torsion Bar For “Ram Cylinder” Parallelism
Manual Ram Deflection Adjustment
Bottom of Stroke Dwell Timer
Motorized Mechanical Depth Stop In Cylinders
(1) Top Punch
(1) 8-Way Bottom Die
Foot Pedal
OPTIONAL ACCESSORIES AVAILABLE: … P.O.R.
Pilz Laser Guard
(3) Axis “R” – CNC Control Of Back Gauge
CNC Controlled Mechanical Auto Crown
Servo Back Gauge
Installation & Training
COMMENTS:
Work Example:
1” Flange, 90 Degree Form, 48” Long In 10 Ga M.S.
Simply:
Go To Screen “A”
(Auto Or Manual)
Step #1) Touch: … “Auto”
Touch: … “Enter”
Go To Screen “B”
(Program Number)
Step #2) Assign Program Number Via Onscreen “Keypad”
Go To Screen “C”
(Prompted Fields)
Step #3) Using The “Onscreen” Keypad Enter The Dimensions For The Following “Prompted” Fields:
(Note: See “Work Example” … Above)
A) Angle to be Formed: 90-Degrees
B) Length to be Formed: 48”
C) Material Type: M.S.
D) Backgauge Dimension: 1”
F) “Tooling Library” … Select a Top Punch: 1/16” – Radius.
G) “Tooling Library” … Select A Bottom Die: 1” – V
Step #4) Touch: “Auto-Calculate”
… Sets: … Ram Position & Pressure
Step #5) Press the “CNC” Start Button Under the Screen
(NOTE: Machine will Now Position Back gauge & Ram)
Step #6) Place Material Between the Top Punch and Bottom Die, Step on the Foot Pedal and Start Forming!
It’s That Easy!
